Description

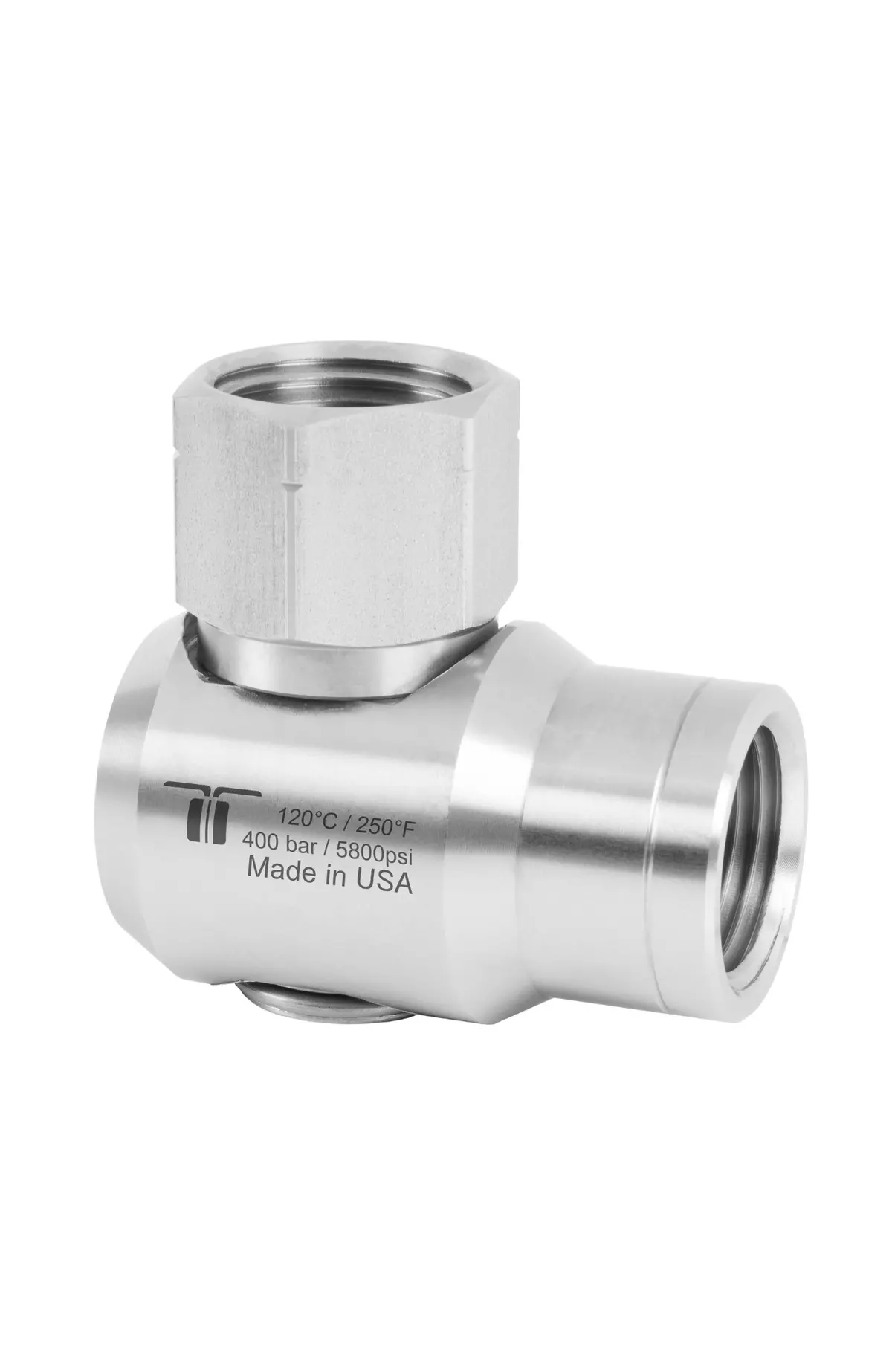

The Mosmatic WDEI Swivel 43.471 is a compact, high-pressure stainless steel swivel engineered for use in hose reels and high-performance fluid systems. Designed for reliability in demanding environments, it features a sliding bearing for smooth, controlled rotation and a durable O-ring NBR seal, with optional EPDM or FKM materials available for enhanced compatibility with chemicals or higher temperatures. With 1/4″ NPTF inlet and outlet ports, this swivel handles up to 5800 psi, operates at 30 RPM, and withstands temperatures up to 250°F, making it an ideal choice for industrial cleaning, washdown, and pressure hose applications.
Applications
-
High-pressure hose reels
-
Industrial washdown systems
-
Pressure washing equipment
-
Chemical and fluid transfer lines
Features
-
Stainless steel construction for superior corrosion resistance
-
Sliding bearing ensures smooth, stable rotation
-
Thread IN: 1/4″ NPTF | Thread OUT: 1/4″ NPTF
-
Dimensions: Overall Diameter – 1.25″ | Overall Length – 1.91″
-
Nominal Width (NW): 1/4″
-
Rated for 5800 psi working pressure
-
Maximum operating temperature: 250°F
-
Max RPM: 30
-
Sealing system includes O-ring NBR (optional EPDM or FKM available for specialized media)
Specs
Pressure: 5800 psi (40 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4″ NPTF
Thread Out: G2 1/4″ NPTF
Nominal Width (NW): 1/4″
Wrench Size (SW): 0.87
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 1.91
Length 3 (L3): 1.14
Length 4 (L4): 1.28
Diameter (D1): 1.25
Weight: 9.3 oz
