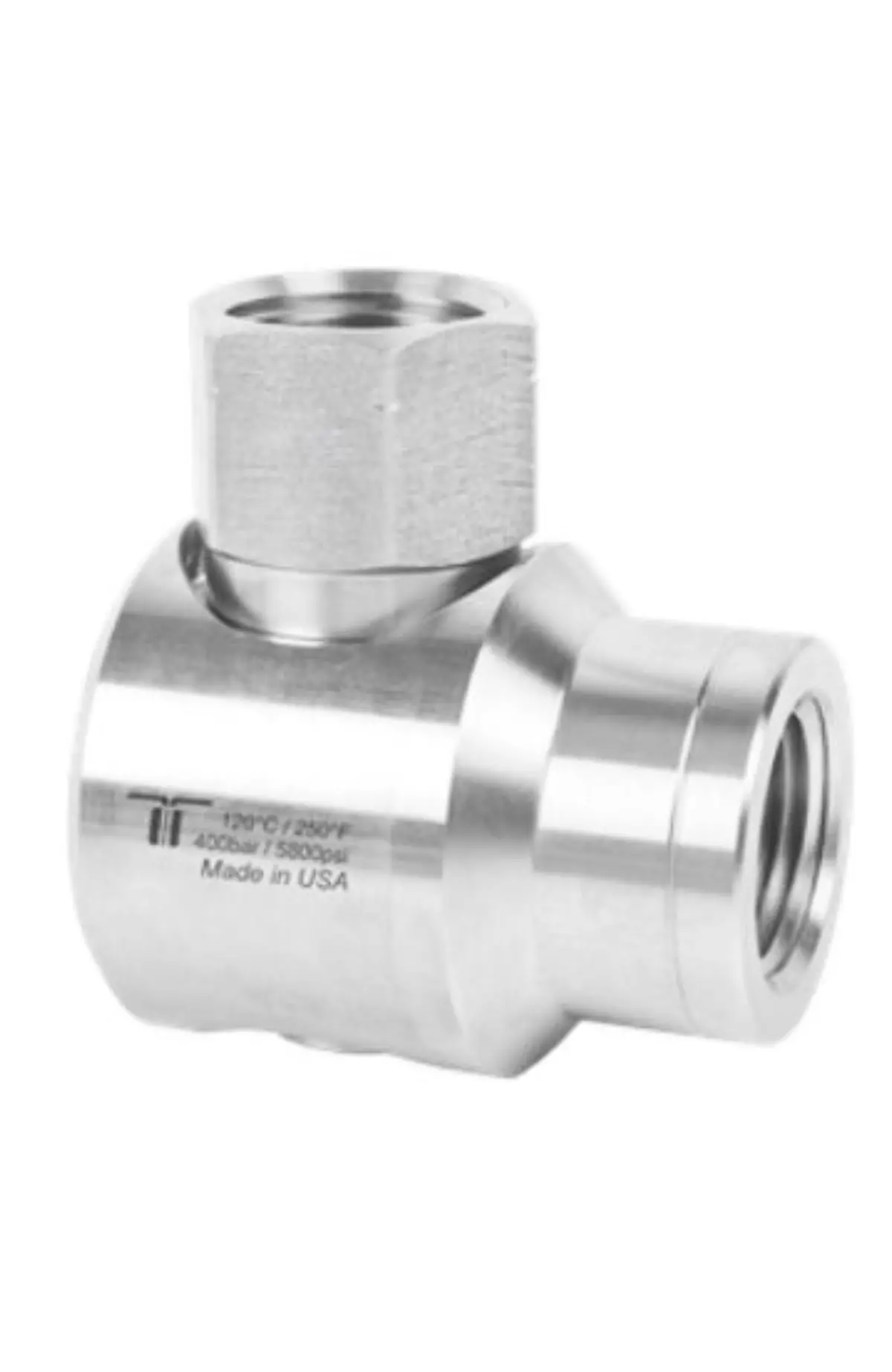

The Mosmatic WDEI Swivel 43.571B – Box of 25 Units offers a high-pressure swivel solution ideal for hose reel applications in industrial and commercial environments. Each swivel is made from durable stainless steel and includes a sliding bearing for smooth, stable operation under load. The standard O-ring NBR seal ensures leak-free performance, while optional EPDM or FKM seals are available for applications requiring enhanced chemical and thermal resistance. With 1/4″ NPTF inlet and outlet connections, these swivels are rated for 7300 psi, withstand up to 250°F, and support 30 RPM, making them ideal for OEM builds and maintenance teams.
Applications
-
High-pressure hose reels
-
Washdown and fluid transfer systems
-
Chemical handling and spray equipment
-
OEM hose reel assemblies and service kits
Key Features
-
Box contains 25 stainless steel swivels
-
Thread IN: 1/4″ NPTF | Thread OUT: 1/4″ NPTF
-
High-quality stainless steel construction for corrosion resistance
-
Sliding bearing for smooth, low-friction rotation
-
Sealing: O-ring NBR standard; EPDM or FKM optional for specific media compatibility
-
Dimensions per unit: Overall Diameter – 1.25″ | Overall Length – 1.91″
-
Nominal Width (NW): 1/4″
-
Rated for 7300 psi and up to 250°F
-
Operates at up to 30 RPM
Specs
Pressure: 7300 psi (50 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4″ NPTF
Thread Out: G2 1/4″ NPTF
Nominal Width (NW): 1/4″
Wrench Size (SW): 0.87
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 1.91
Length 3 (L3): 1.14
Length 4 (L4): 1.28
Diameter (D1): 1.25
Box: 25 pcs
Weight: 9.3 oz
