Description

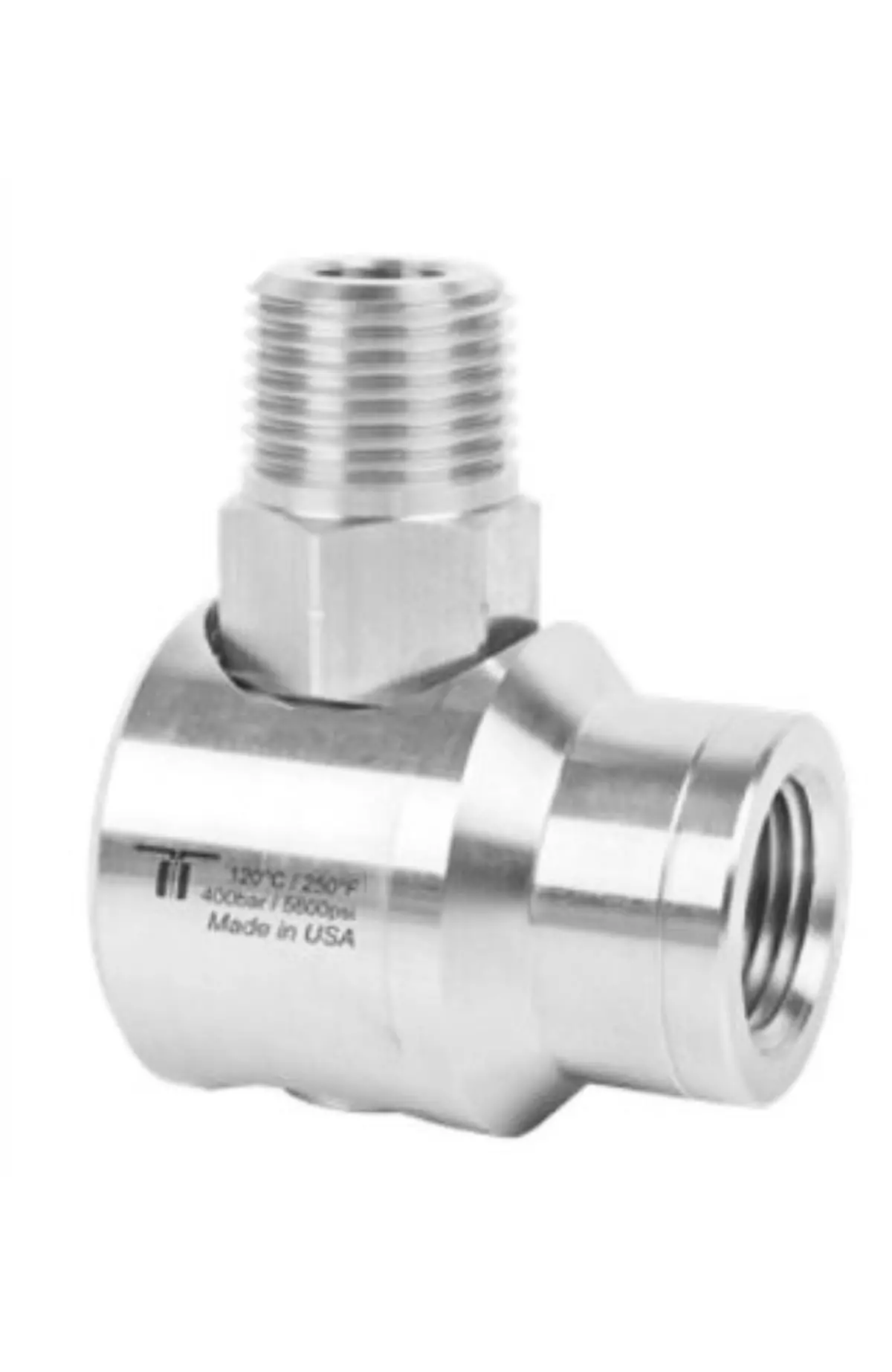

The Mosmatic WDEI Swivel 43.572B – Box of 25 Units offers a high-performance solution for hose reel systems operating in high-pressure environments. Designed for durability and efficiency, each swivel is crafted from stainless steel and includes a sliding bearing for smooth, consistent rotation. The standard O-ring NBR seal ensures leak-proof reliability, while optional EPDM or FKM seals provide compatibility with harsh chemicals and elevated temperatures. Featuring 3/8″ NPTF inlet and outlet threads, these swivels handle up to 7300 psi, tolerate temperatures up to 250°F, and perform at speeds of up to 30 RPM, making them perfect for OEMs and large-scale maintenance needs.
Applications
-
High-pressure hose reels
-
Washdown and cleaning systems
-
Fluid transfer and chemical handling
-
OEM hose reel assemblies and industrial maintenance
Key Features
-
Box includes 25 stainless steel swivels
-
Thread IN: 3/8″ NPTF | Thread OUT: 3/8″ NPTF
-
Corrosion-resistant stainless steel body for longevity
-
Sliding bearing delivers smooth, reliable performance
-
Seal options: O-ring NBR standard; EPDM or FKM optional for enhanced chemical and thermal resistance
-
Dimensions per unit: Overall Diameter – 1.25″ | Overall Length – 1.91″
-
Nominal Width (NW): 3/8″
-
Pressure rated to 7300 psi, with a 250°F temperature limit
-
Operates at up to 30 RPM
Specs
Pressure: 7300 psi (50 MPa)
Temperature: 250°F
RPM: 30
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8″ NPTF
Thread Out: G2 3/8″ NPTF
Nominal Width (NW): 3/8″
Wrench Size (SW): 0.87
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 1.91
Length 3 (L3): 1.14
Length 4 (L4): 1.28
Diameter (D1): 1.25
Box: 25 pcs
Weight: 8.3 oz
