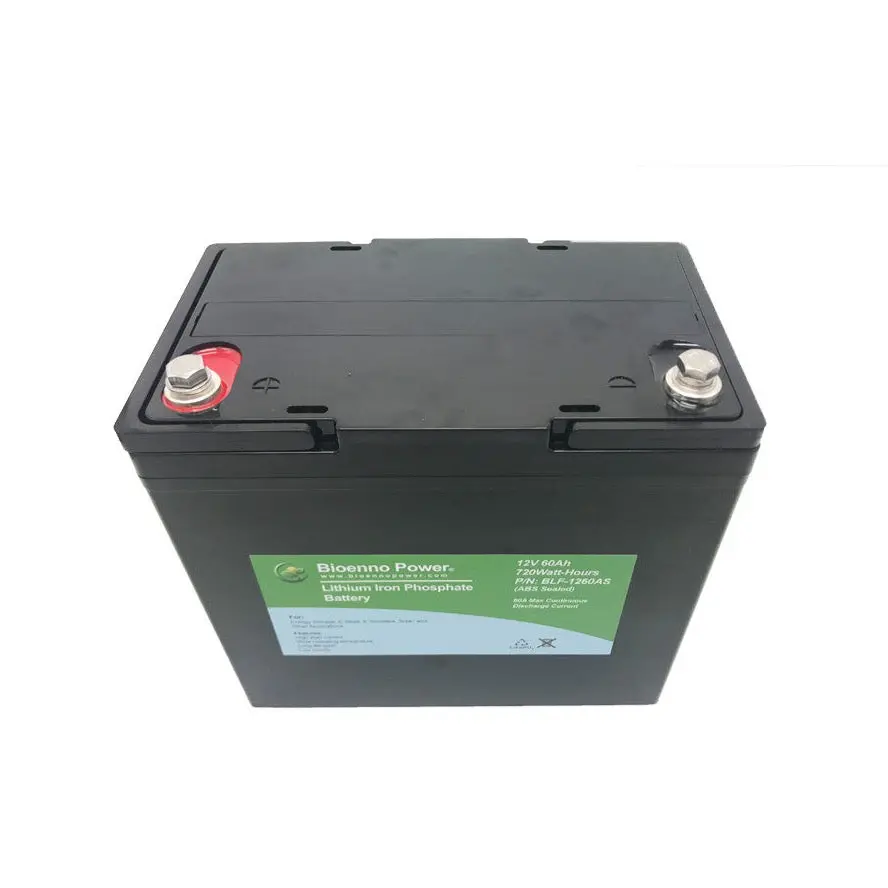

BLF-1260AS 12-Volt 60-Amp-Hour LiFePO4 Battery in Durable ABS Housing

Description

User Manual – BLF-1260AS | Material Safety Data Sheet – LiFePO4 | UN383_BLF-1260AS



---

Product Overview

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1260AS is a compact, high-capacity 12V 60Ah battery engineered for high-load, long-runtime applications. With its sealed ABS case and built-in PCM protection, this model delivers consistent, EMI-free power for avionics, e-bikes, solar systems, and communication devices.

---

Key Features of the 12V 60Ah Lithium Battery

1. High Discharge Capability

• Max Continuous Discharge: 60A

• Peak Discharge Current: 120A (5 seconds)

• Max Power Output: 720 Watts (12V × 60A)

2. Integrated PCM Protection

• Balances internal cells and protects against overcurrent, overvoltage, undervoltage, and short circuiting.

• Includes integrated charging control for safe and consistent charging behavior.

3. Durable ABS Housing

• Fully sealed ABS case supports rugged use across field and mobile environments.

• Silent operation—no EMI or RFI, making it ideal for avionics and sensitive electronics.

4. Charger Compatibility

• Works with Bioenno Power BPC-1510C AC-to-DC charger

• Specs:

  • Input: 110VAC / 220VAC

  • Output: 14.6VDC at 10A

  • Connector: Alligator Clips

---

Battery Specifications – BLF-1260AS

• Voltage: 12V

• Capacity: 60Ah

• Max Output Power: 720 Watts

• Case Type: ABS Sealed

• Charge/Discharge Connector: Screw Terminal

• Dimensions: 8.9 in. × 5.4 in. × 8.1 in. (228 mm × 137 mm × 204 mm)

• Weight: 17.4 lbs. (7.9 kg)

---

Benefits

• Power-Dense Design: Delivers high current and runtime in a manageable size.

• Reliable Energy Source: Supports critical applications with high discharge needs.

• Extended Cycle Life: Engineered for 2,000+ charge cycles under standard conditions.

---

Ideal Applications

• Sailplane and avionics power systems

• E-bikes, scooters, and mobility platforms

• Portable solar power and energy storage

• Communication equipment and AV setups

• Field operations and off-grid electronics

---

Installation Note

Before use, ensure all screw terminals are wrench-tightened for secure electrical contact.

---
