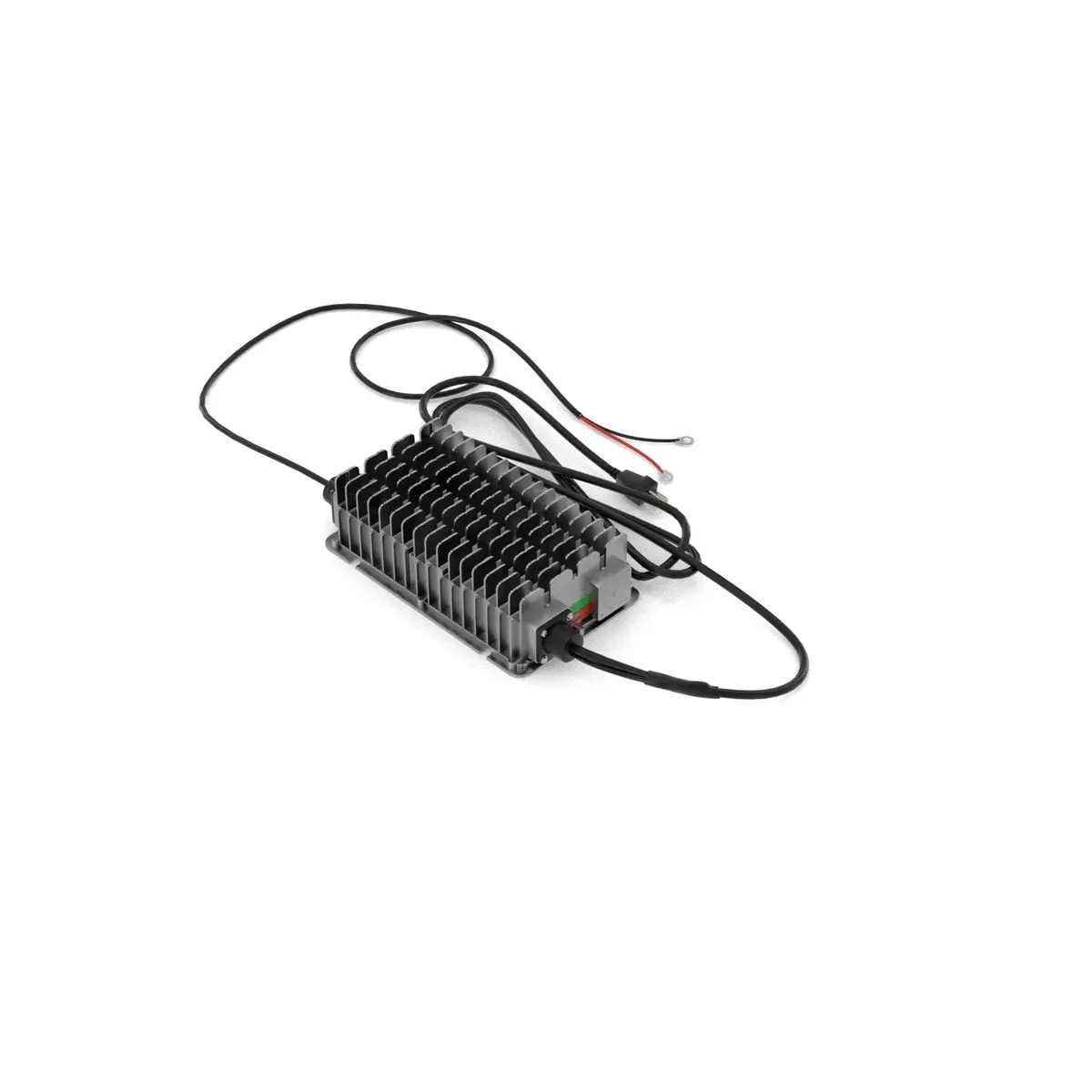

Abyss® 24V Onboard Lithium-Ion Battery Charger for Marine Use

Description

Experience longer run times and shorter charge times when you use our On-Board 24V  High Precision Lithium Charger. Get the quickest, most intelligent, and efficient charge for your battery. Specifically designed to charge your Abyss Battery® 24V Lithium Trolling Motor Battery, this charger offers users extended battery life and reliability with its built-in protection features.

Note: The 20A version of this charger is recommended for the 24V 100Ah trolling motor battery and is slightly larger while having a different appearance compared to the 10A version.

Features:

• IP68 Rating.
• 2-Year Warranty.
• Marine-grade construction.
• Overcurrent limit.
• High voltage safety.
• Reverse connection protection.
• Temperature protection.
• Full-Auto timing shutdown.
• Anti-Walking function.
• LED indicator for Charging Process.
• CAN communication (optional).
• 12V5A Auxiliary power supply (optional).

Safety:

• Short-Circuit: Yes
• Open-Circuit: Yes
• Overheating: Yes
• Overcharge: Yes
• Spark-Proof: Yes
• Reverse Polarity: Yes

Size:

• Length: 7.5 Inches (190mm)
• Width: 5 Inches (127mm)
• Height: 2.5 Inches (63mm)
• Weight: 3.3 Pounds (1.5kg)

Operating Requirements:

• Line Voltage: 120V to 240V AC
• Frequency: 50Hz to 60Hz
• Operating Temperature: -4° to 104° F (-20° to 50° C)
• Storage Temperature: -22° to 140° F (-30° to 60° C)
• Relative Humidity: 0 to 95% Non-Condensing

Cord Management:

• DC Cable + Eyelet Length: 72 Inches (182cm)
• DC Cable Size: 16 AWG
• DC Fuse Size: 7.5 AMP MINI ® Blade Fuse
• AC Cable Length: 72 Inches (182cm)
• AC Cable Size: 18 AWG
• Oil, gas, grease, water, chemical, UV, abrasion resistant
