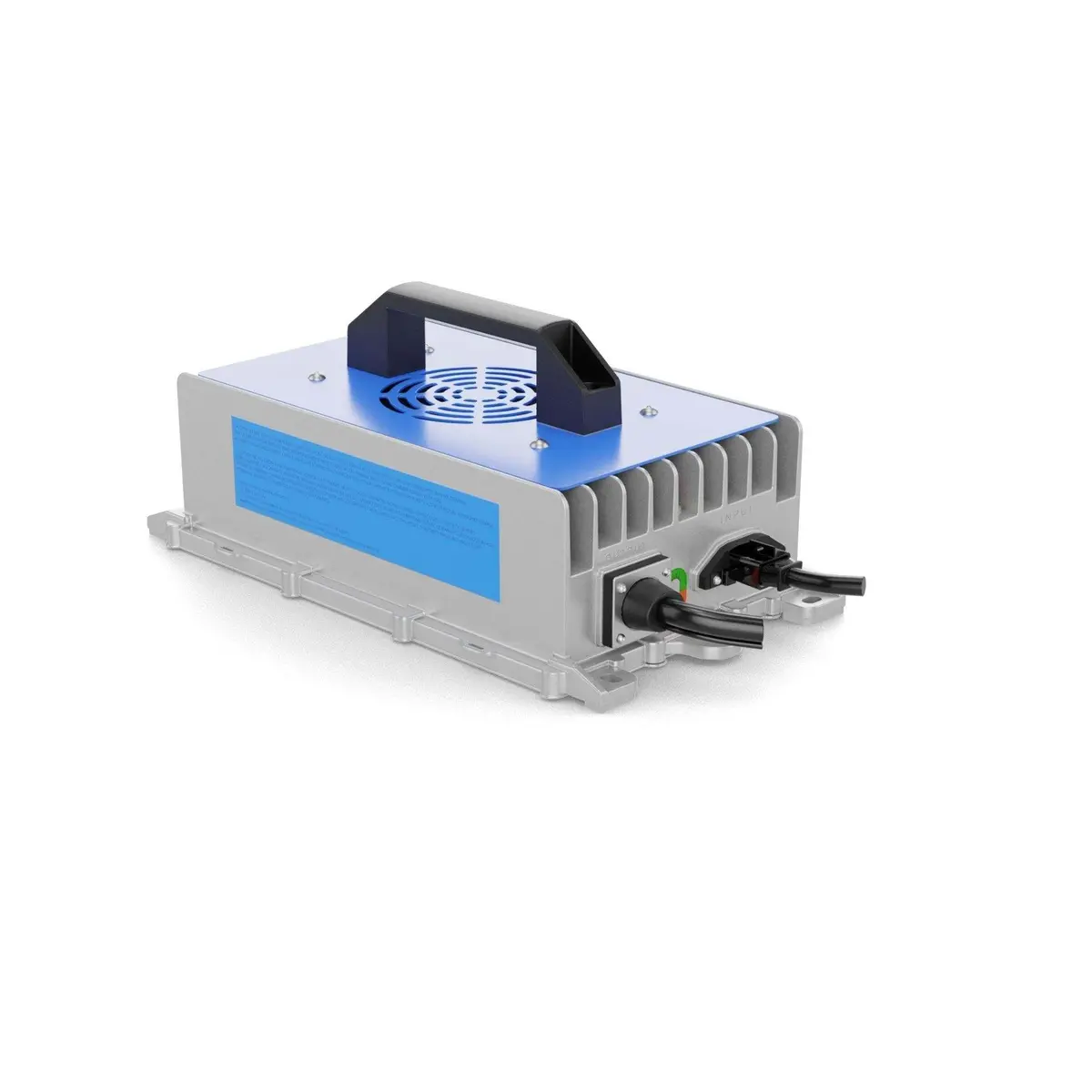

Abyss® 36V 20A Onboard Lithium-Ion Battery Charger for Marine Use

Description

Experience longer run times and shorter charge times when you use our onboard 36V 20A High Precision Lithium Battery Charger. meticulously engineered to deliver unparalleled efficiency, intelligence, and speed in battery charging. Designed specifically for the ABYSS® 36V 105AH Lithium Trolling Motor Battery, this charger offers users extended battery life and reliability with its built-in protection and innovative safety features.

Our charger not only promises exceptional performance and reliability but also provides the peace of mind that comes with advanced safety features. Additionally this marine battery charger offers wide range compatibility and can be used to charge other brands of 36-Volt Lithium Batteries. Optimize your time on the water with a charger that stands at the forefront of technology, offering you the quickest, most intelligent, and efficient charging solution.

 Design Features:

• IP68 Rating.
• 2-Year Warranty.
• Marine-grade construction.
• Ignition Protection.
• Overcurrent limit.
• High voltage safety.
• Reverse connection protection.
• Temperature protection.
• Full-Auto timing shutdown.
• Anti-Walking function.
• LED indicator for Charging Process.
• CAN communication (optional).
• 12V5A Auxiliary power supply (optional).

Safety:

• Short-Circuit: Yes
• Open-Circuit: Yes
• Overheating: Yes
• Overcharge: Yes
• Spark-Proof: Yes
• Reverse Polarity: Yes

Size:

• Height: 10.5 Inches (267mm)
• Width: 6 Inches (152mm)
• Depth: 3 Inches (76mm)
• Weight: 7.1 Pounds (3.2kg)

Operating Requirements:

• Line Voltage: 120V to 240V AC
• Frequency: 50Hz to 60Hz
• Operating Temperature: -4° to 104° F (-20° to 50° C)
• Storage Temperature: -22° to 140° F (-30° to 60° C)
• Relative Humidity: 0 to 95% Non-Condensing

Cord Management:

• DC Cable + Eyelet Length: 72 Inches (182cm)
• DC Cable Size: 16 AWG
• DC Fuse Size: 7.5 AMP MINI ® Blade Fuse
• AC Cable Length: 72 Inches (182cm)
• AC Cable Size: 18 AWG
• Oil, gas, grease, water, chemical, UV, abrasion resistant
• Red = Negative, Yellow/Green = Ground, Purple = Neutral
