Description
Elevate high-level inspections with SkyVac’s professional High Reach Inspection Camera Systems. Engineered for accuracy, speed, and safe ground-level surveying, these systems give contractors, surveyors, and cleaning specialists a clear visual advantage. Choose between two purpose-built options: the SurveyCam High-Reach Inspection System for HD recording and playback, or the Real Time Camera System for instant, live-view assessments. Both deliver reliable visibility for guttering, roofing, chimney checks, and property maintenance without ladders or additional tech.

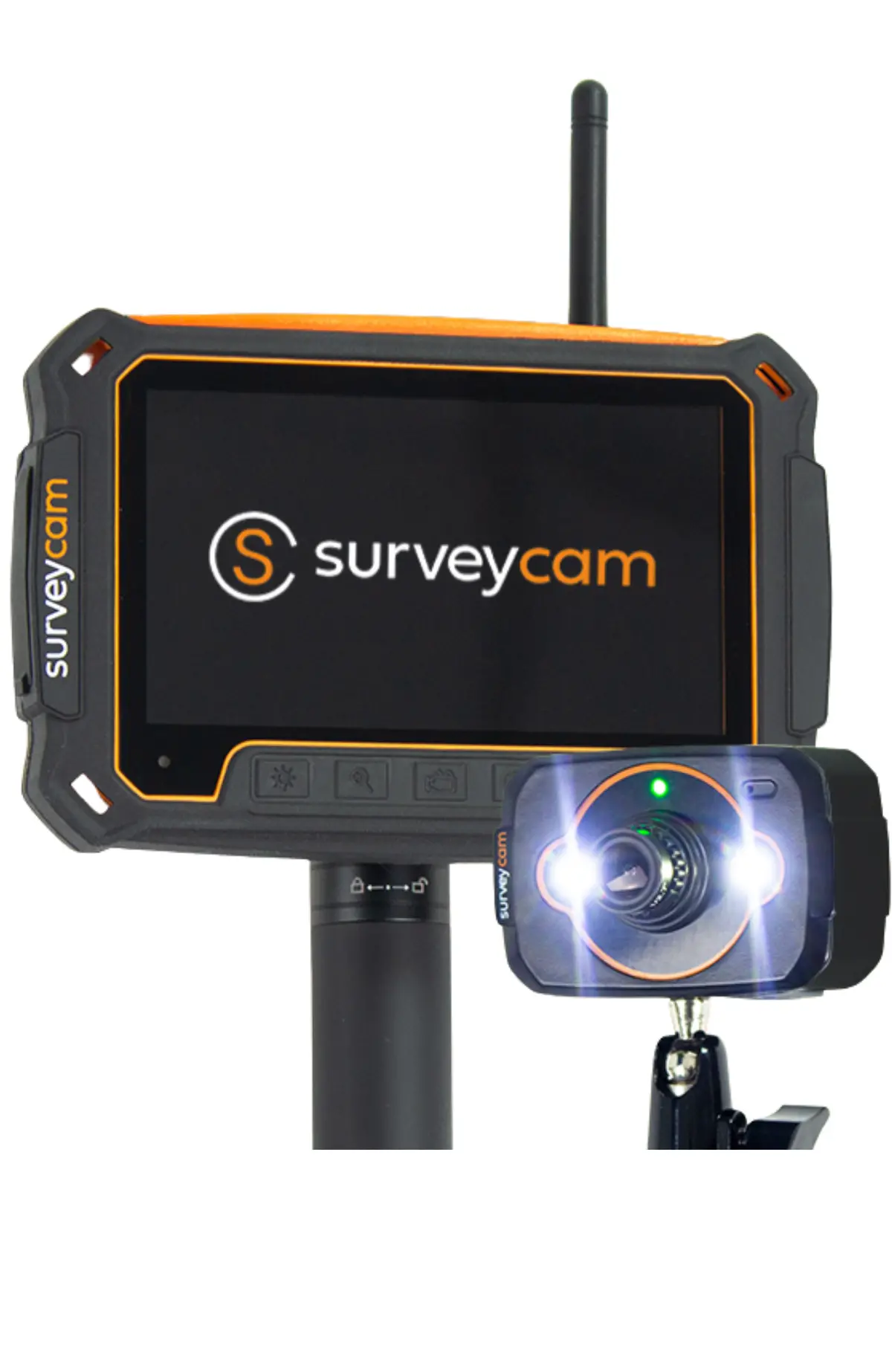

SurveyCam High-Reach Inspection System
Designed for users who require documented results, the SurveyCam pairs a bright 5″ HD monitor with a lightweight, LED-equipped camera to capture high-definition photos and videos from the ground. With 3x zoom, SD card recording, and secure encrypted signal transmission up to 100m, it supports detailed reporting on commercial or sensitive sites. A durable, weather-resistant case and rechargeable battery ensure dependable performance wherever the job takes you.
Key Features
- 5″ HD monitor with sunshade and 3x zoom
- HD image and video capture with Micro SD playback
- Encrypted signal up to 100m using GFSK modulation
- Lightweight camera at 65g and monitor at 225g
- Integrated LED lighting with 2m visibility
- Rechargeable battery with 3-hour runtime
- Weatherproof, foam-lined protective case
- Not compatible with iPhones

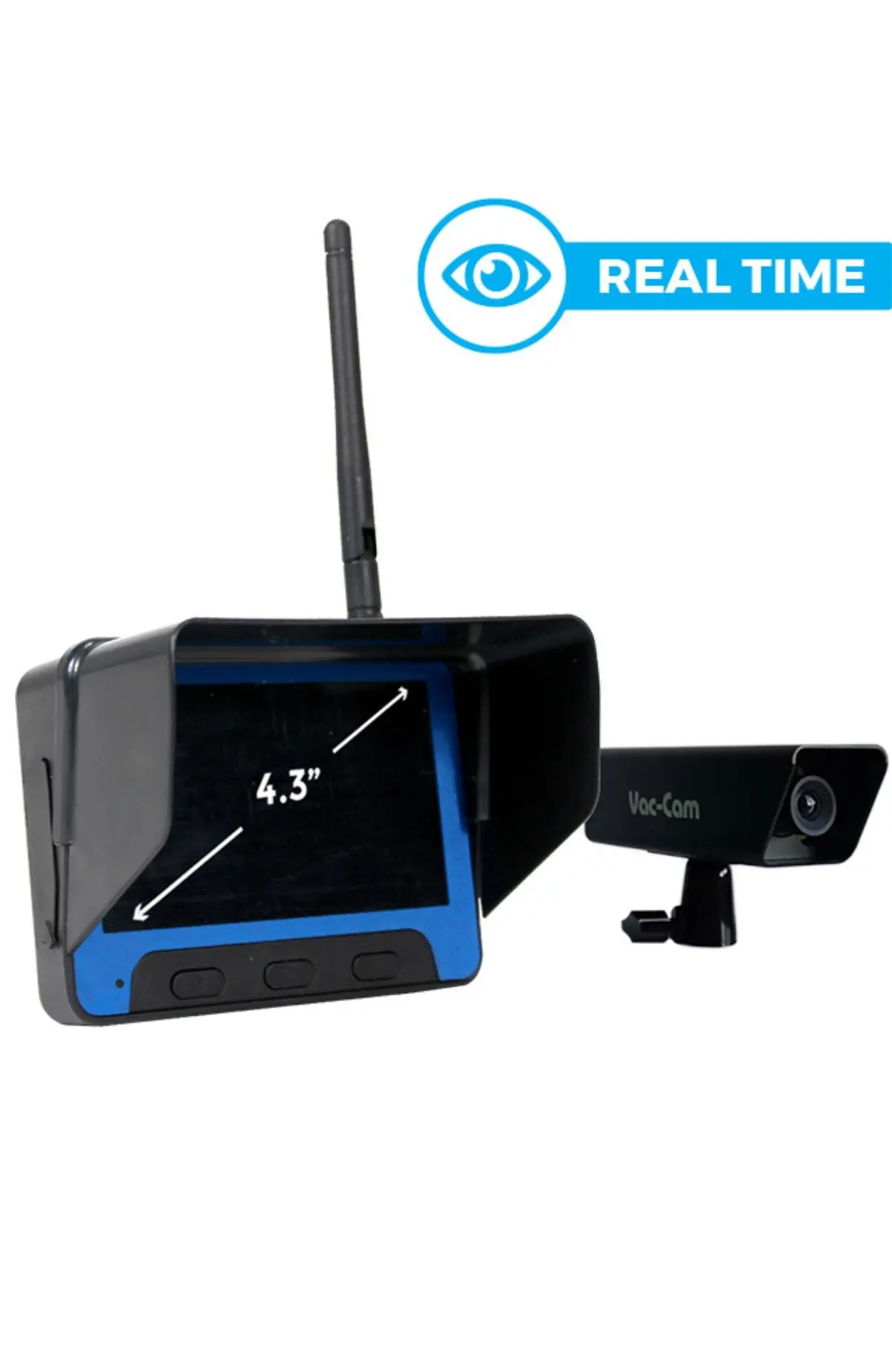

Real Time Camera System
Built for fast, on-site assessments and customer demonstrations, the Real Time Camera System delivers immediate visual feedback via a 4.3″ LCD monitor. With no apps, Wi-Fi, or cables required, it pairs instantly and provides live viewing up to 50m. Lightweight, weather-ready components and an LED-lit camera make it ideal for showcasing gutter conditions or verifying completed work on the spot.
Key Features
- 4.3″ color LCD monitor with detachable sun visor
- Live, real-time viewing up to 50m
- Instant pairing with no Wi-Fi or apps required
- Lightweight, IP4-rated design suitable for all weather
- LED-lit overhead camera for clear visibility
- Adjustable monitor brightness
- Live view only with no recording function
High Reach Inspection Systems Applications
- Gutter inspections and cleaning
- Roof, fascia, and chimney surveys
- High-reach property assessments
- Commercial and residential maintenance
- Client reporting and visual documentation
- Secure inspection projects with the SurveyCam recording option
Videos
Disclaimer: This video is the property of its original creator or manufacturer and is provided here for informational purposes only. Clean Direct does not claim any rights to this content and is not responsible for its accuracy or representations.
Included
Survey Camera High Reach Inspection System
Included as Standard:
- 1 x SurveyCam Camera
- 1 x SurveyCam Monitor
- 1 x Monitor Antenna
- 1 x 8GB TF Card
- 1 x Monitor Sunshade
- 1 x Multi-Functional TF Card Reader
- 1 x Monitor Bracket
- 1 x Camera Bracket
- 1 x Plug Adaptor
- 1 x Car Adaptor
- 2 x USB Charging Cables
- 1 x Protective Case
Real Time Camera System
Included as Standard:
- 1 x skyVac Camera
- 1 x skyVac Monitor
- 1 x Spring Clip (for mounting onto the tool holder)
- 1 x Monitor Spring Clip
- 1 x Detachable Sun Visor
- 1 x Car Adaptor
- 1 x Power Adaptor
- 2 x USB Charging Cables
- 1 x Protective Case
Specs
SurveyCam® Monitor Specifications:
- Screen Size: 5 Inch TFT LCD
- Display Resolution: 1280×720
- Unobstructed Receive Range: 328 feet
- Zoom: 3 levels
- Modulation Mode: GFSK
- Power Supply: 5V (VDC)
- Battery (integrated): 2500mAh
- Charge Time: 3 hours
- Working Time (full Charge): 3 Hours
- Memory: T-Flash Card
- Max. Memory Size: 64GB
- Picture Format: 1 x JPEG
- Video Format: 1280 x 720HD – MP4
- Picture/Video Resolution: 720 Pixels
- Operation Temperature: ℃/°F -10~+50 Centigrade /+14~+122 Fahrenheit
- Dimensions: 6″ x 1″ x 4″
- Weight: 9 0z
- Weather Proof Rating: IP64 for light showers
SurveyCam® Camera Specifications:
- Image Sensor: 1/4 Inch JX-H62
- Effective Pixels: 1280×720
- View Angle: 45°
- Transmission Frequency: Encrypted 2400~2483 MHz
- Modulation Mode: GFSK
- Unobstructed Effective Range: 328 feet
- white LED light range: 6.5 feet
- Power Supply: 5V DVC
- Battery (integrated): 1200mAh
- Charge Time: 2 Hours
- Working Time (full charge): 2.5 Hours (LED OFF）/ 2(LED ON) hours
- Operation Temperature: ℃/°F -10~+50℃ /+14~+122°F
- Dimensions: 2″ x 40D x40H mm
- Weight: 2 OZ
- Weather Proof Rating: IP64 for light showers
SurveyCam® Output:
- Video: 1280x720HD When filming for longer periods, videos are automatically saved as 10 Minute video files. 15 Minutes filming would be saved as 1 x 10 minute / 1 x 5 Minute videos.
- Images: 1MP

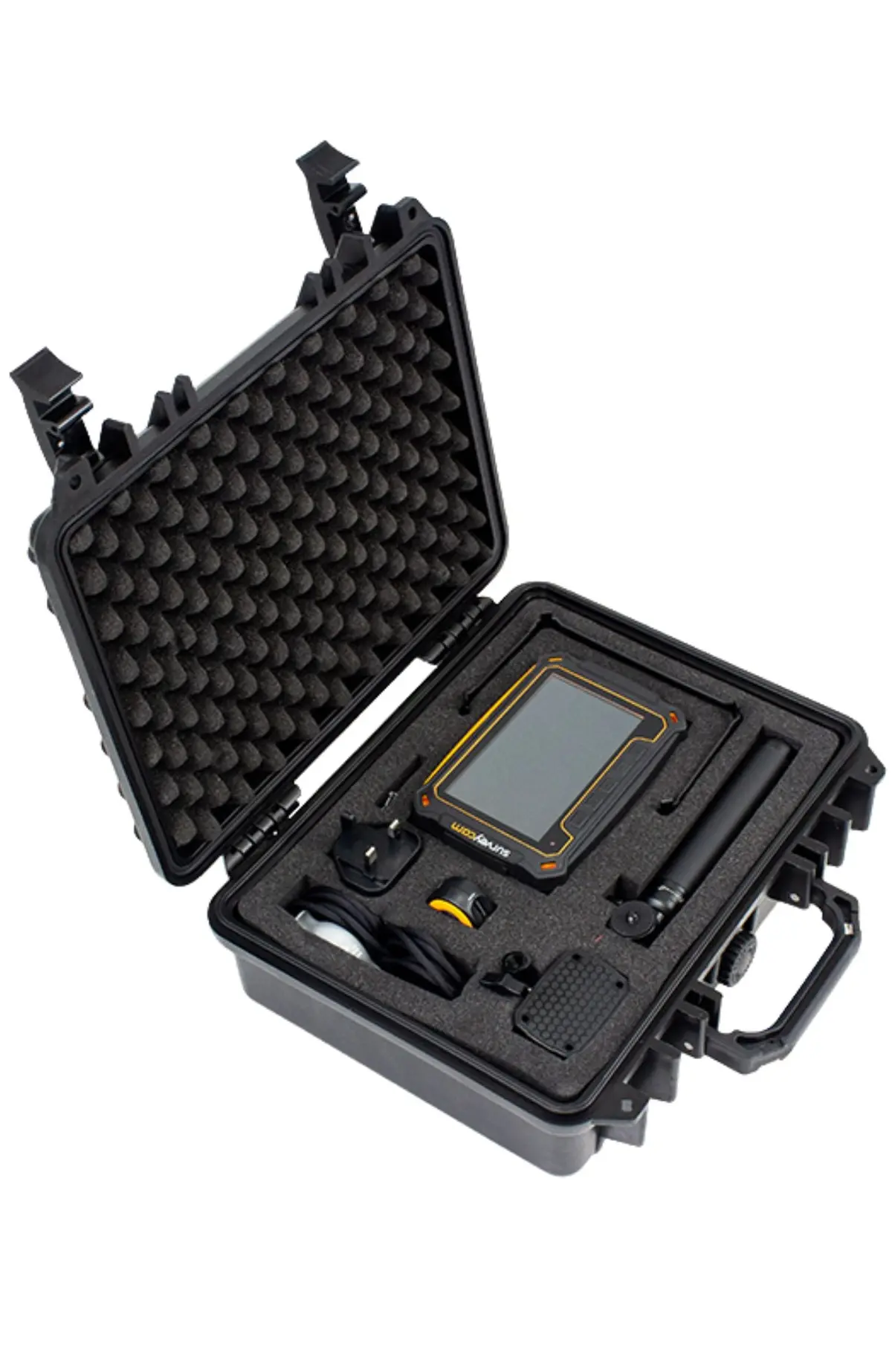

SurveyCam® Photographic Case:
- Dimensions: 13″x 11″ x 5″
- Watertight seal around lid
- Foam protected storage compartments
- Secure double throw latches
- Soft grip handle
- Holes on either edge for padlocking
- Injection Molded high quality Polypropylene
“Real Time” Camera Specifications:
- Image Sensor: 1/4 Inch CMOS
- Effective Pixels: 640 x 480
- View Angle: 45 Degrees
- Transmission Frequency: 2400~2483 MHz
- Modulation Mode: GFSK
- Unobstructed Effective Range: 164 ft / 50 Meters
- White LED light range: 6 ft / 2 Meters
- Power Supply: 5V VDC
- Charge Time: 2.5 Hours
- Working Time (full charge):3 hours (LED OFF）/ 2.5 hours(LED ON)
- Operation Temperature: 10~+50°C/+14~+122°F
- Dimensions: 130 x 30 x 58mm
- Weight: 100g
“Real Time” Monitor Specifications:
- Screen Size: 4.3 Inch TFT LCD
- Display Resolution: 480 x 272
- Unobstructed Effective Range: 164 ft /50 Meters
- Modulation Mode: GFSK
- Power Supply: 5V VDC
- Charge Time: 3 Hours
- Working Time (full charge):3 hours
- Operation Temperature: 10~+50°C/+14~+122°F
- Dimensions: 115 x 30 x 135mm
- Weight: 165g
Please Note: The Camera Mount for use with the telescopic pole, is not included as standard. You can find it here.
Telescoping SkyPole Sold Separately.
Manuals
SurveyCam User Manual
“Real Time” Camera System Manual
