Mosmatic WDEI Rotary Swivel Union Model 43.472B – Dual 3/8″ NPTF Ports

Description

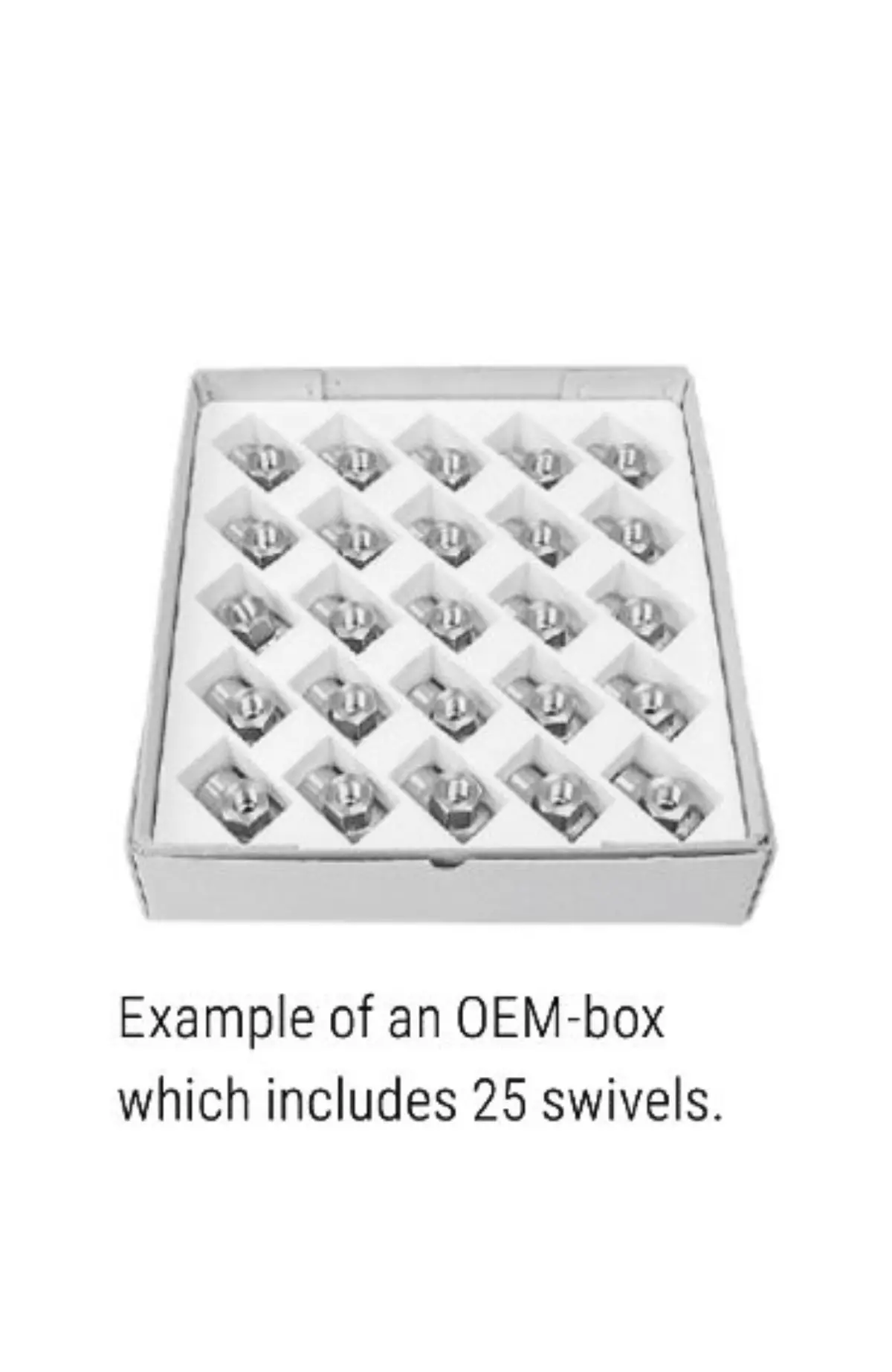

The Mosmatic WDEI Swivel 43.472B – Box of 25 Units delivers industrial-grade performance in a cost-efficient bulk package. Built from corrosion-resistant stainless steel, each swivel is engineered for high-pressure hose reels and fluid systems requiring long-lasting durability. A sliding bearing provides smooth, reliable rotation, while a standard O-ring NBR seal ensures leak protection. For specialized media or environments, optional EPDM or FKM seals are available. With ⅜” NPTF inlet and outlet threads, each swivel in this 25-piece box handles 5800 psi, up to 30 RPM, and 250°F, making it ideal for OEMs, service departments, and large-scale operations.

Applications

• Pressure washer and hose reel systems

• Industrial washdown setups

• Air and water line swivels in tight spaces

• OEM and maintenance use

• 3/8″ female thread fluid lines

Features

• Box includes 25 stainless steel swivels

• Thread IN: ⅜” NPTF | Thread OUT: ⅜” NPTF

• Durable stainless steel construction resists corrosion and wear

• Sliding bearing delivers consistent, low-friction rotation

• Standard O-ring NBR seal with optional EPDM or FKM for compatibility with various media

• Dimensions per unit: Overall Diameter – 1.25″ | Overall Length – 1.91″

• Nominal Width (NW): ⅜”

• Rated for 5800 psi and temperatures up to 250°F

• Supports speeds up to 30 RPM

Specs

Pressure: 5800 psi (40 MPa)

Temperature: 250°F

RPM: 30

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8″ NPTF

Thread Out: G2 3/8″ NPTF

Nominal Width (NW): 3/8″

Wrench Size (SW): 0.87

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 1.91

Length 3 (L3): 1.14

Length 4 (L4): 1.28

Diameter (D1): 1.25

Box: 25 pcs

Weight: 8.3 oz
