Description

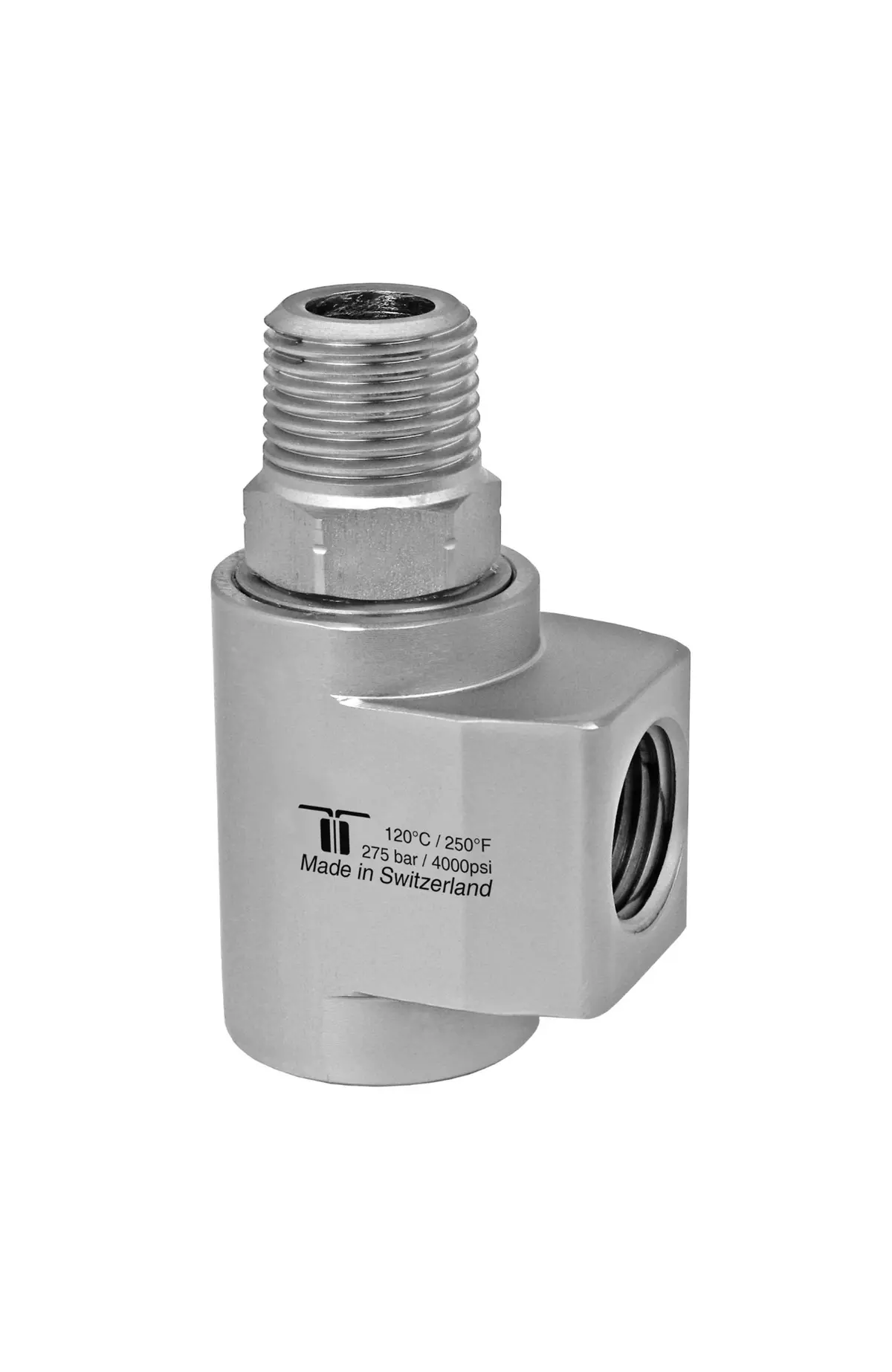

The Mosmatic DYGI Swivel 57.659 is a precision-engineered stainless steel swivel developed for high-speed, high-pressure self-rotating applications. Built for demanding use in surface cleaners, tire cleaners, parts washers, and industrial cleaning equipment, this swivel is maintenance-free and built to the highest standards of durability and performance.
Equipped with a triple bearing system€”including 2 radial ball bearings and 1 thrust bearing€”this swivel ensures smooth, stable rotation under load. A carbide seal system delivers long-lasting, leak-resistant operation. With …œ” NPTF IN and OUT threading, a 1.42″ diameter, 3.42″ length, and 0.87″ wrench size, it supports up to 4000 PSI, 2000 RPM, and 250°F, making it ideal for intensive cleaning environments. Its corrosion-resistant stainless steel construction and bulkhead mount fitting provide both strength and secure installation in demanding systems.
Applications
-
Industrial surface cleaners and rotary washers
-
Tire and wheel cleaning stations
-
Self-rotating spray bar systems
-
Automated or manual parts washers
-
High-pressure wash systems in food-grade or corrosive environments
Features
-
Stainless steel body for corrosion resistance and high durability
-
Triple bearing design: 2 radial + 1 thrust ball bearing for smooth, high-speed rotation
-
Carbide seal system for leak-free performance and extended lifespan
-
…œ” NPTF IN / …œ” NPTF OUT thread for standard connection compatibility
-
Dimensions: 1.42″ diameter, 3.42″ length, 0.87″ wrench size
-
Rated for 4000 PSI, 2000 RPM, and 250°F max temperature
-
Bulkhead mounting design for stable and secure installation
-
Maintenance-free, engineered for continuous-duty performance
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8″ NPTF
Thread Out: G2 3/8″ NPTF
Nominal Width (NW): 3/8″
Wrench Size 1 (SW1): 0.87″
Wrench Size 2 (SW2): 0.87″
Wrench Size 3 (SW3): 1.34″
Diameter (D) (overall diameter): 1.42″
Length 1 (L1) (overall length) : 3.42
Weight: 7 oz
