Description

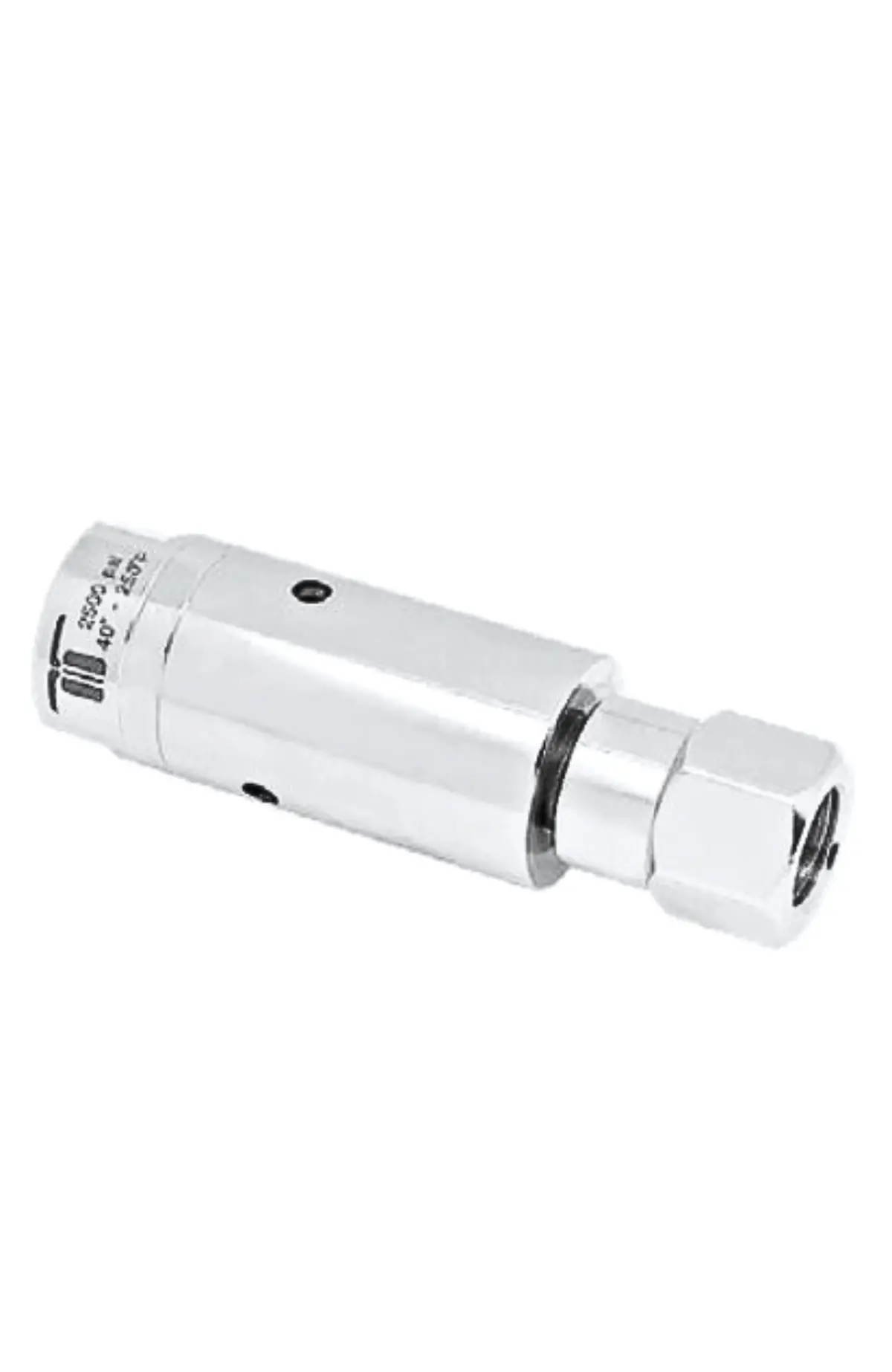

The Mosmatic DXL Swivel 36.152 is a high-performance brass, nickel-plated swivel designed for use in high-pressure and high-RPM environments. Engineered with durability and precision in mind, this swivel is ideal for applications such as parts washers, tire cleaners, and industrial cleaning systems. The triple bearing system—including two radial ball bearings and one thrust bearing—ensures smooth, stable operation even under continuous rotation. A robust ceramic seal system offers excellent resistance to high temperatures and abrasive media. Built for corrosion resistance and maintenance-free reliability, this swivel features a bulkhead fitting for secure mounting.
Applications
-
High-pressure cleaning technology
-
Tire and wheel cleaning systems
-
Industrial parts washers
-
High-speed rotating cleaning tools
-
Automated wash bays and machinery
Key Features
-
Nickel-plated brass body for enhanced corrosion resistance
-
Triple bearing system: 2 radial, 1 thrust ball bearing
-
Ceramic seal system for optimal durability and leak prevention
-
Suitable for high-pressure (2500 PSI) and high-RPM (2000 max) applications
-
Bulkhead mount for secure, stable installation
-
Maintenance-free operation
-
Thread IN: 3/8″ NPTF | Thread OUT: 1/4″ NPTF
-
Max Pressure: 2500 PSI (17 MPa)
-
Max RPM: 2000
-
Temperature Range: 40°F – 250°F
-
Overall Diameter: 0.98″
-
Overall Length: 3.30″
-
Nominal Width (NW): 1/4″
-
Wrench Size (SW): 0.87″
Specs
Pressure: 2500 psi (17 MPa)
Temperature: 40°- 250°
RPM: max 2,000 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8″ NPTF
Thread Out: G2 1/4″ NPTF
Nominal Width (NW): 1/4″
Wrench Size 1 (SW1): 0.87″
Wrench Size 2 (SW2): 0.75″
Length 1 (L1) (overall length) : 3.30″
Diameter (D) (overall diameter): 0.98″
Weight: 6.7oz
