Description

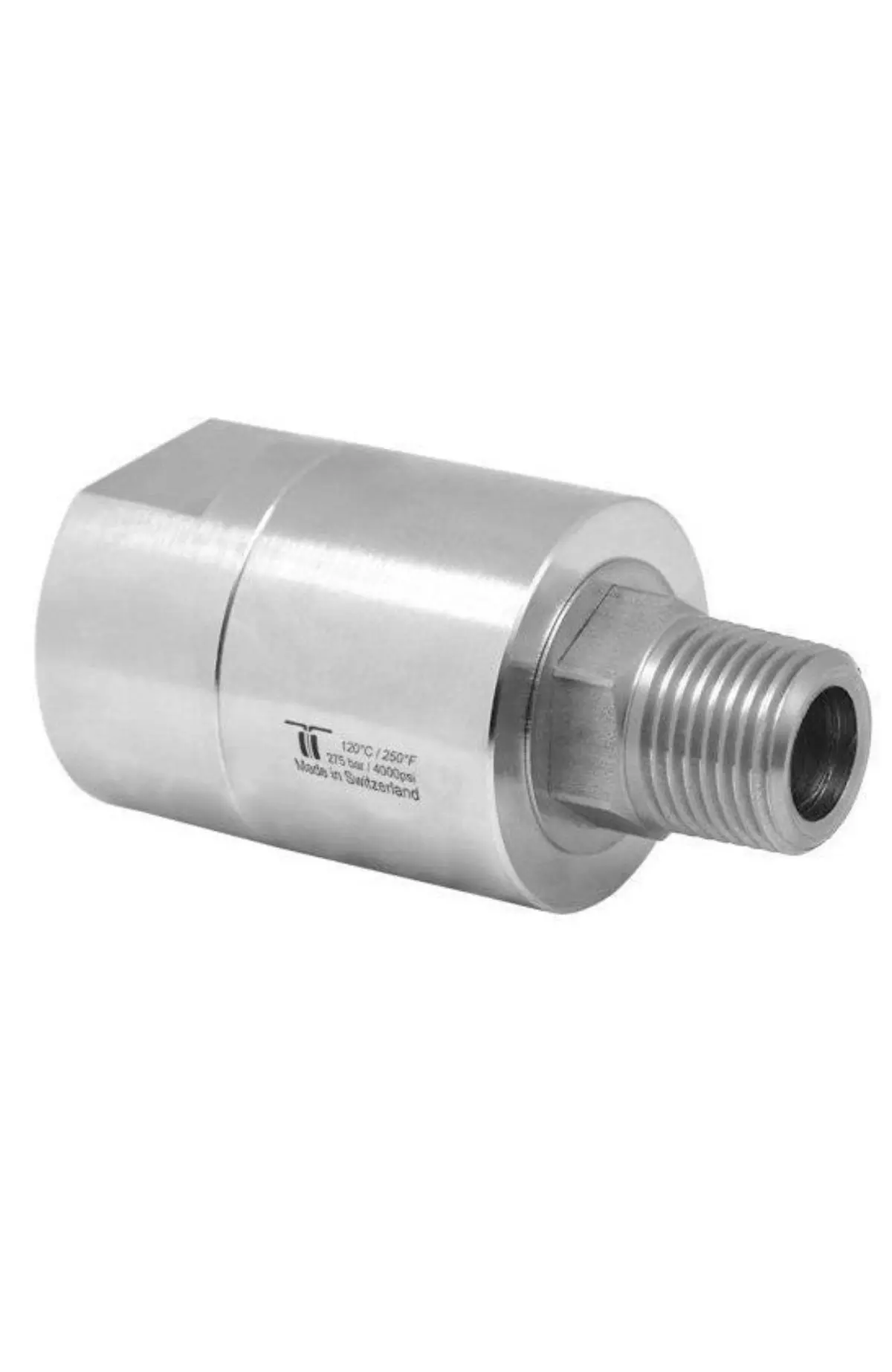

The Mosmatic DGE Swivel – 34.754 is a high-performance stainless steel swivel engineered for high-pressure, high-flow operations across a variety of demanding environments. Designed to support both thrust and radial forces, this swivel features 1x thrust ball bearing and 2x sliding bearings for smooth, reliable operation. With a pressure rating of 5000 PSI and temperature resistance up to 250°F, it’s perfect for applications in pharmaceutical manufacturing, food processing, industrial cleaning, and automatic car wash systems.
Applications:
-
Pharmaceutical fluid handling and CIP systems
-
Food and beverage sanitation and spray lines
-
Car wash sprayers and rotary connections
-
Industrial washdown and chemical systems
Key Features:
-
Rugged stainless steel construction for corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
High-flow capacity for demanding applications
-
Supports both radial and thrust forces at low RPM
-
Thread IN: 3/4″ NPTF | Thread OUT: 3/4″ NPTM
-
Nominal Width (NW): 3/4″
-
Diameter: 1.97″
-
Overall Length: 3.66″
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4″NPTF
Thread Out: G2 3/4″NPTM
Nominal Width (NW): 3/4″
Wrench Size 1 (SW1): 1.06
Wrench Size 2 (SW2): 1.58
Diameter (D1): 1.97″
Length 1 (L1) (overall length): 3.66″
Length 2 (L2): 2.58
Length 3 (L3): 0.63
Weight: 27.8oz
