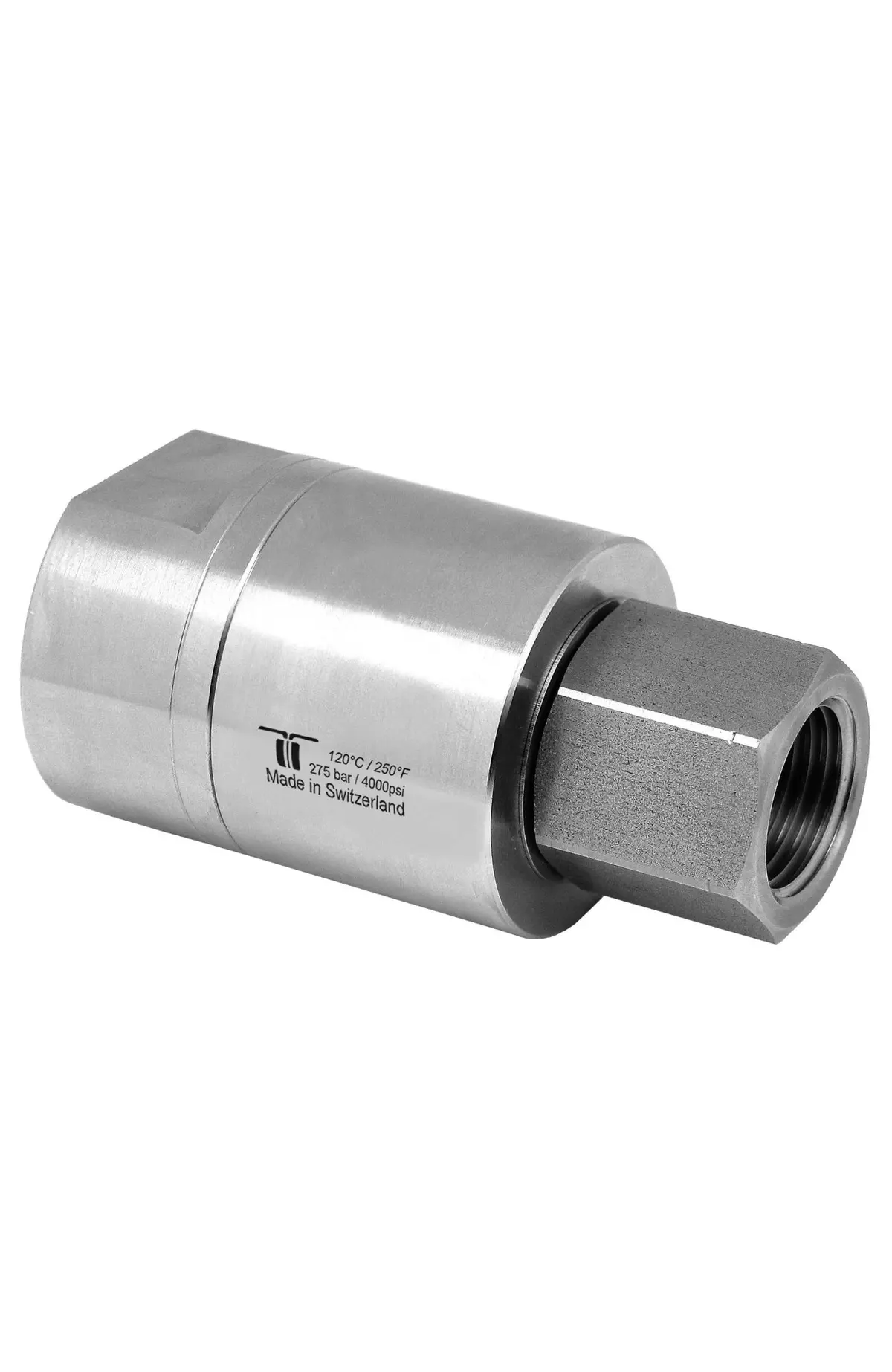

Mosmatic DGE 90° Swivel Rotary Union – Model 34.872, Featuring Male G1 3/8″ NPTF and Female G2 3/8″ NPTM Connections

Description

The Mosmatic DGE Swivel – 34.872 is a high-quality, corrosion-resistant swivel engineered for high-pressure, high-flow applications in industrial and food-grade environments. Built from nickel-plated brass with a stainless steel interior, this swivel supports both thrust and radial forces for smooth, efficient operation. Featuring a 1x thrust ball bearing, ensuring dependable performance, it offers stability and durability in continuous-use systems. Rated for up to 4000 PSI and 250°F, it’s ideal for applications requiring reliable, sanitary, and low-RPM performance.

Applications:

• High-pressure fluid transfer systems

• Food and beverage processing and washdown

• Sanitary and chemical cleaning operations

• Industrial rotary joints and hose reels

Key Features:

• Nickel-plated brass body with stainless steel internal components

• With 1x thrust ball bearing

• Handles both thrust and radial force loads

• Designed for high-flow, low-RPM use

• Corrosion-resistant for industrial and sanitary environments

• Thread IN: 3/8″ NPTF | Thread OUT: 3/8″ NPTM

• Nominal Width (NW): 3/8″

• Diameter: 1.64″

• Overall Length: 3.46″

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8″NPTF

Thread Out: G2 3/8″NPTM

Nominal Width (NW): 3/8″

Wrench Size 1 (SW1): 0.87

Diameter (D1): 1.64″

Diameter 2 (D2): 1.64

Length 1 (L1) (overall length): 3.46″

Length 2 (L2): 2.08

Length 3 (L3): 0.43

Length 4 (L4): 0.67

Length 5 (L5): 0.55

Weight: 22.5oz
