Description

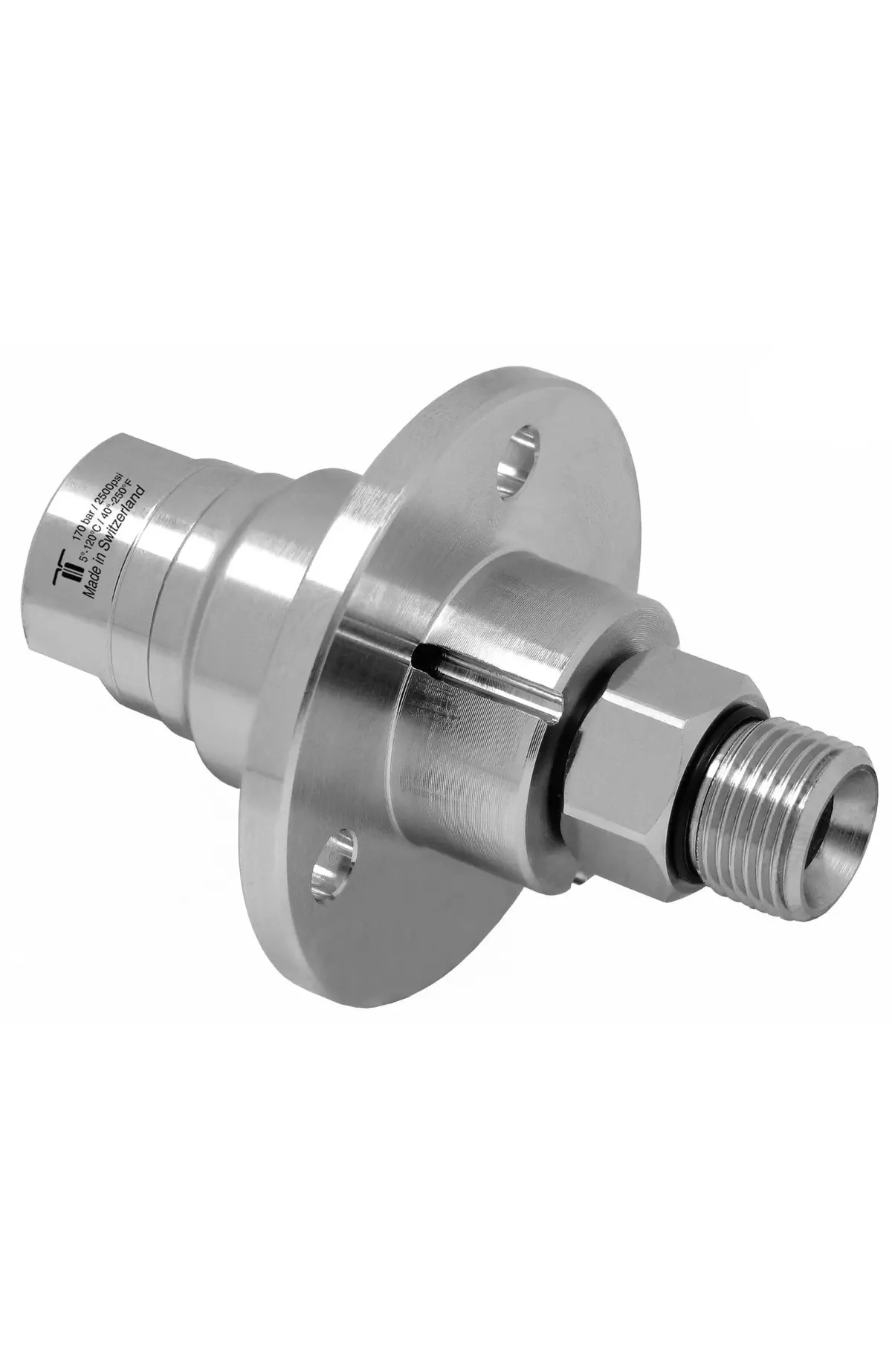

The Mosmatic DXF Swivel – 38.351 is a high-performance stainless steel swivel engineered for high-RPM and high-pressure cleaning systems. Designed for self-rotating equipment such as surface cleaners, tire cleaners, and parts washers, this swivel delivers reliable, long-lasting performance in demanding environments. It features a precision triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, stable rotation. The integrated ceramic seal system offers superior durability under extreme temperature and pressure, while built-in weep holes provide early seal failure detection. A flange mount allows for quick and secure installation.
Applications:
-
High-RPM self-rotating cleaning systems
-
Commercial and industrial surface cleaners
-
Tire and wheel washing equipment
-
Parts washers and automated cleaning tools
Key Features:
-
Stainless steel construction for corrosion resistance
-
Triple bearing system: 2x radial + 1x thrust ball bearing
-
Durable ceramic seal system for long service life
-
Weep holes for proactive seal failure warning
-
Flange mount for fast and secure installation
-
Thread IN: 1/4″ NPTF | Thread OUT: 1/4″ NPTM
-
Nominal Width (NW): 1/4″
-
Overall Diameter: 2.36″
-
Overall Length: 1.45″
-
Max Pressure: 2500 PSI
-
Max RPM: 2000
-
Operating Temperature Range: 40°F to 250°F
Specs
Pressure: 2500 psi
Temperature: 40°F – 250°
RPM: max 2,000 rpm
Material Type: Brass, Nickel Plated
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4″NPTF
Thread Out: G2 1/4″NPTM
Nominal Width (NW): 1/4″
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 0.67
Diameter (D) (overall diameter): 2.36″
Length 1 (L1) (overall length): 1.45
Length 2 (L2): 0.43
Weight: 12.5oz
