Description
COIL PERFORMANCE FOR THE TRAIL AND BEYOND

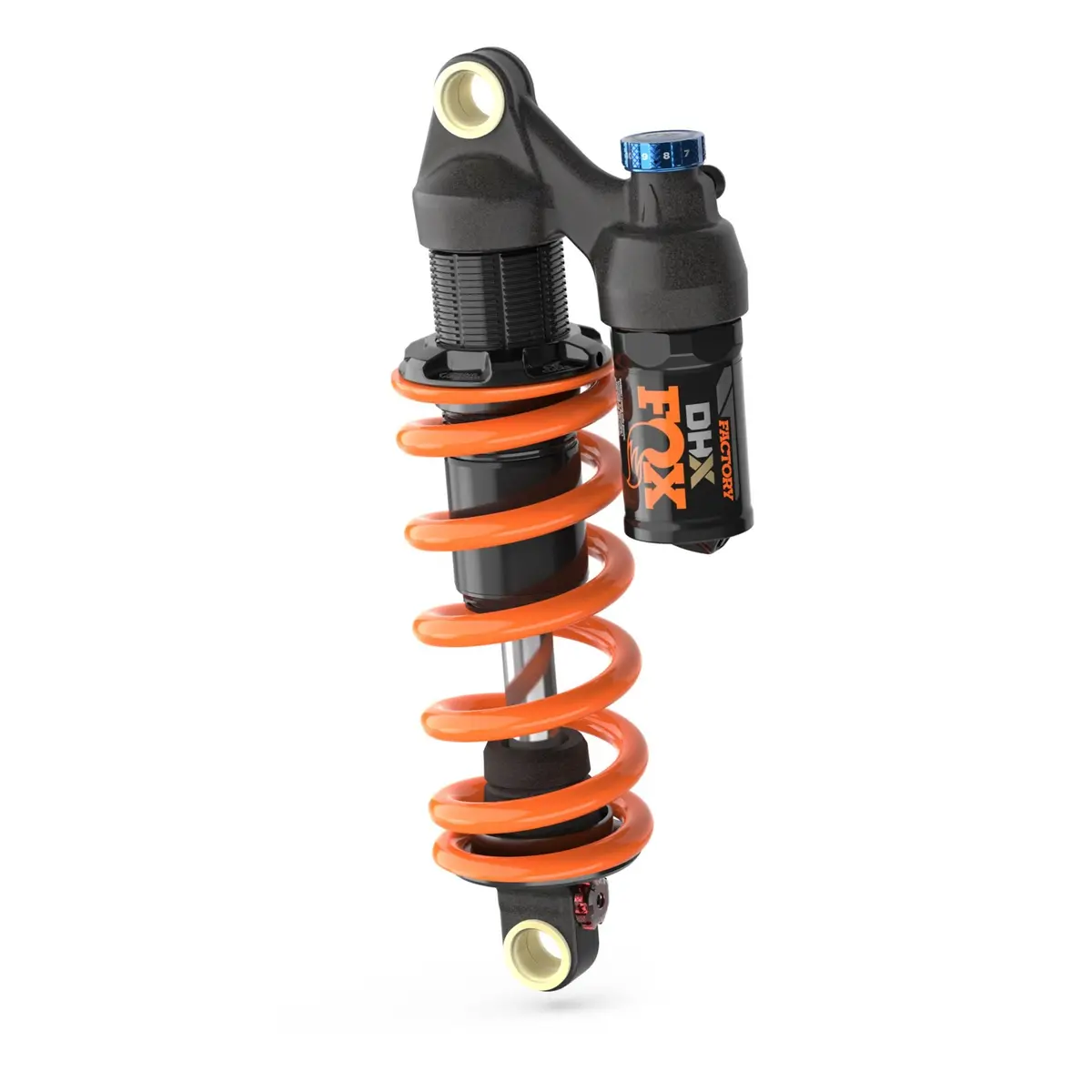

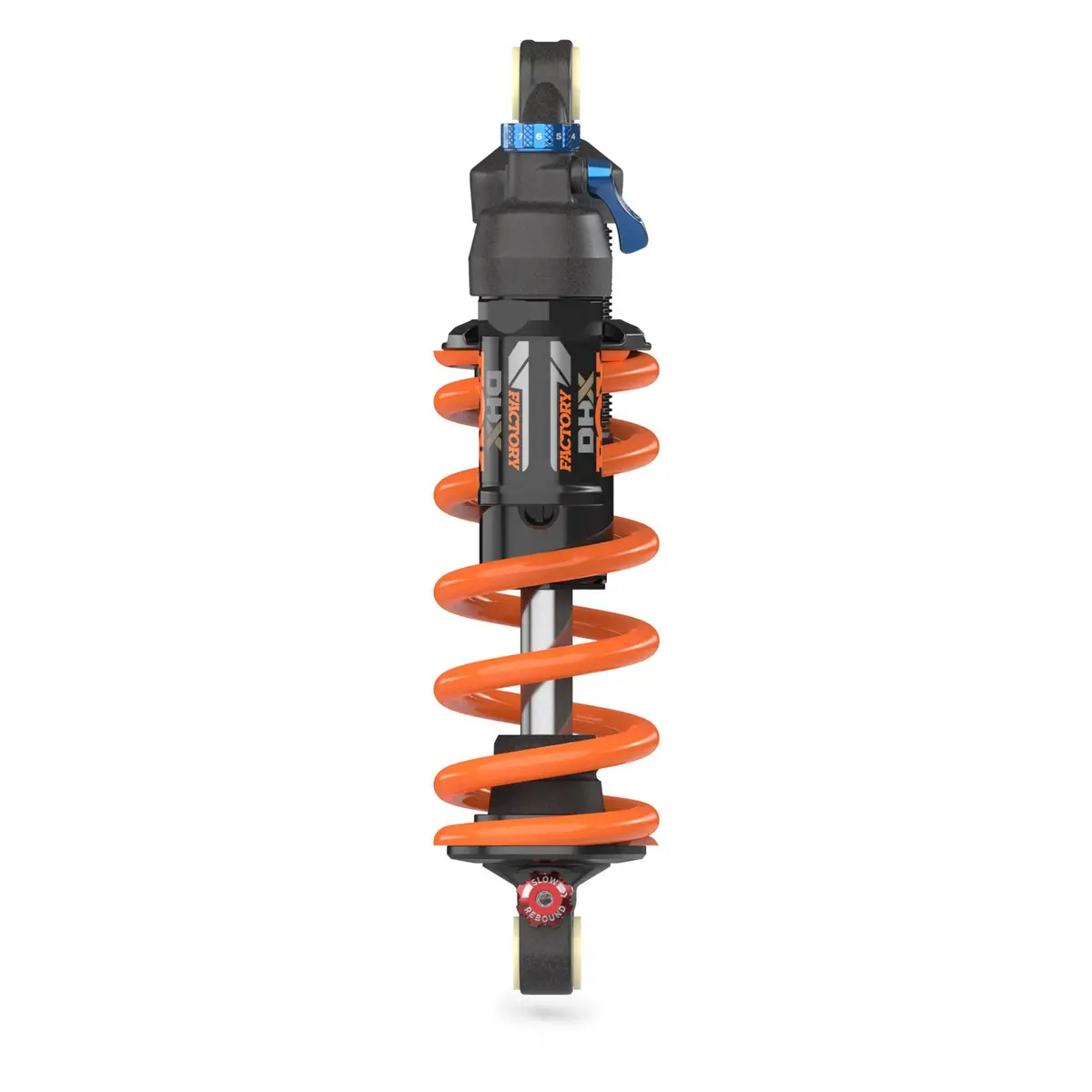

Answering the prayers of riders seeking the ultimate in plush suspension, the new DHX brings coil-sprung, magic-carpet, trail smoothing performance in a wide range of configurations to the trails and beyond.
**Spring sold separately (choice of Black steel or SLS orange or SLS Matte Black)
Choose your eyelet: STANDARD (Imperial and metric sizes) TRUNNION (Metric sizes only)
| SIZES | |
|---|---|
|
Metric – 210 x 50 / 210 x 52.5 / 210 x 55 / 230 x 57.5 / 230 x 60 / 230 x 65 Trunnion – 185 x 52.5 / 185 x 55 / 205 x 60 / 205 x 62.5 |
|
| ADJUSTMENTS |
|---|
| Independent 2 Position Open/Firm Lever |
| Low Speed Rebound , 16 Clicks |
| Low Speed Compression , 11 Clicks |
| Coil spring preload – (new detents on spring collar) |
| ALL FACTORY DHX SHOCKS | |
|---|---|
| Shaft Coating | Chromoly – Ultra-low friction, highly durable damper shaft finish |
| VVC Rebound | Yes |
| Detents on spring collar | Yes |
| SPECS & FAMILY FEATURES |
|---|
| ALL-NEW chassis and damper |
| High-flow main piston |

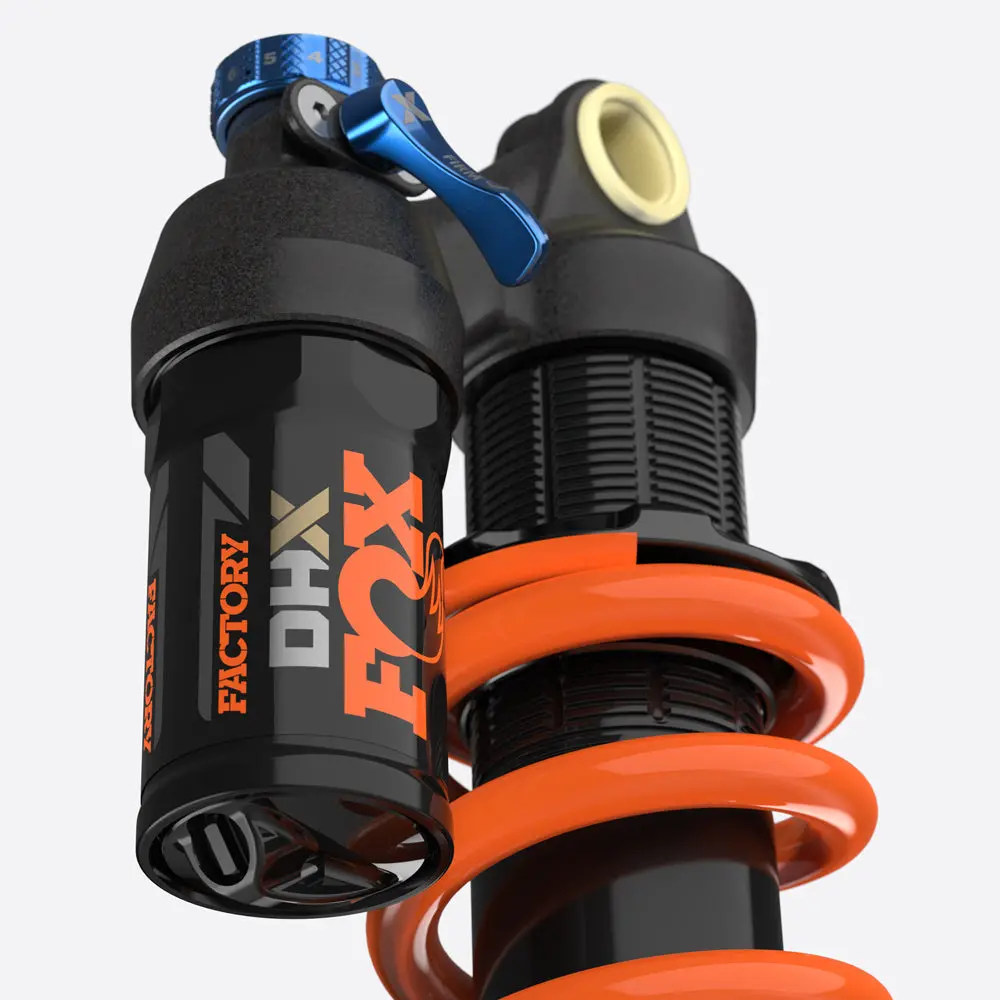

| Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster |

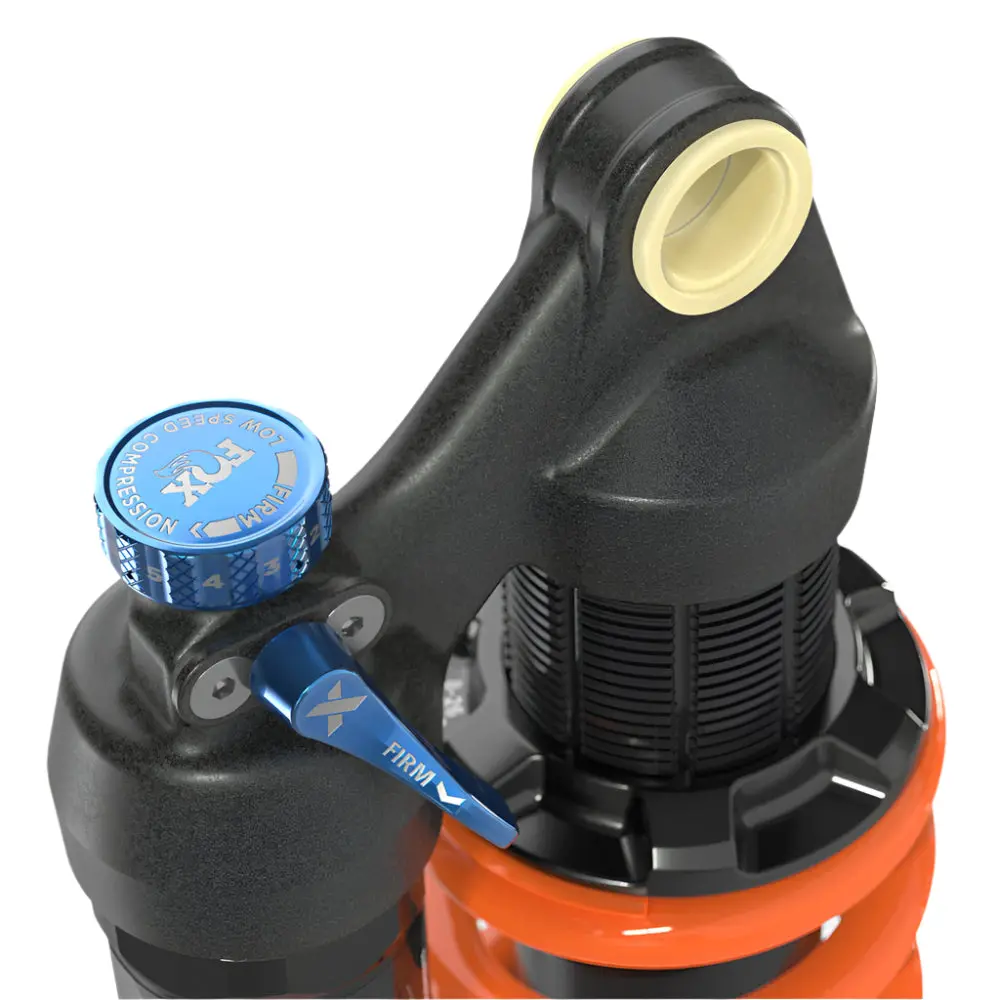

| Independent firm mode circuit , 2 position adjuster |
| Optimized reservoir lengths per shock size |
| Hydraulic top out feature |
| Reduced damper noise |
| MCU bottom out bumper |

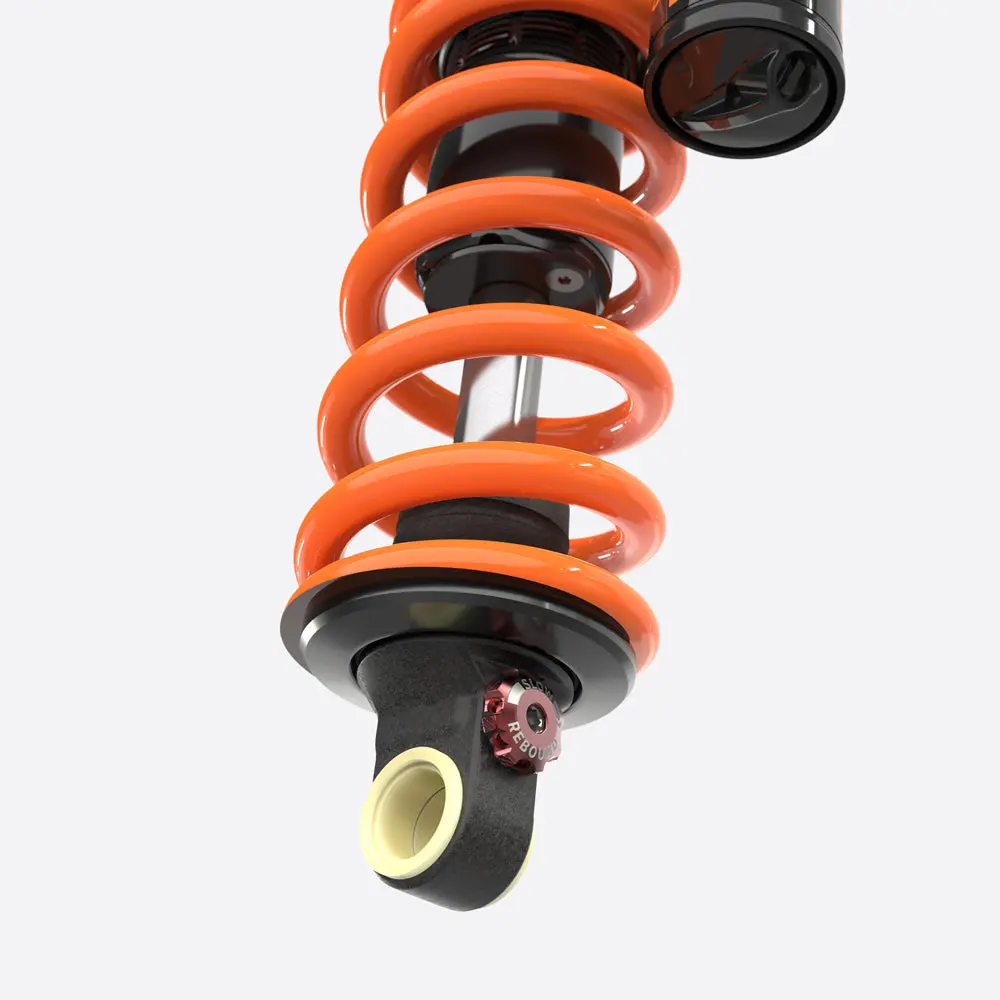

| Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access) |
| Spring preload collar with detents and max / min number of clicks and direction arrow |
| Full diameter spring retainer with wire ring (like DHX2) |
|
Spring scuff guard on body (like DHX2) 2022/24 |
