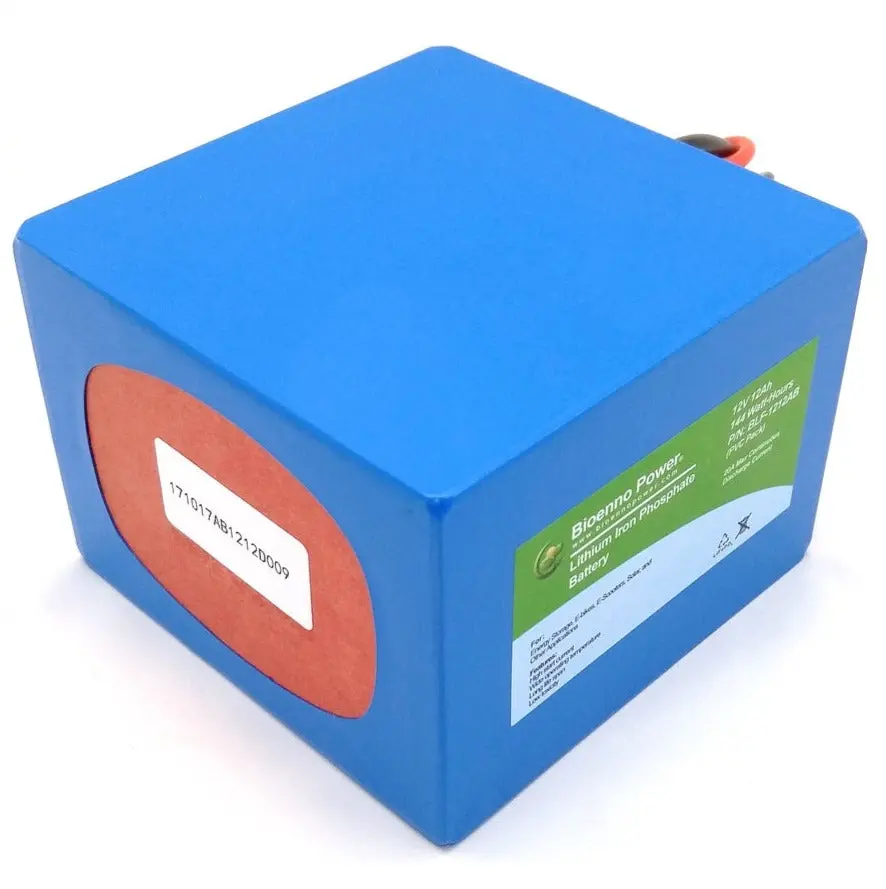

Compact 12V 12Ah LiFePO4 rechargeable battery featuring durable ABS casing and reliable performance for marine, RV, and solar applications

Description

User Manual – BLF-1212AB | Material Safety Data Sheet – LiFePO4 | UN383_BLF-1212AB

---

Product Overview

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1212AB is a high-performance 12V 12Ah battery in a lightweight PVC pack, built for power-demanding use in compact setups. This model delivers reliable output, silent operation, and robust internal protection, making it ideal for avionics, e-bikes, ham radio, and solar-powered electronics.

---

Key Features of the 12V 12Ah Lithium Battery

1. High Discharge Output with Integrated Safety

• Max Continuous Discharge: 20A

• Peak Discharge Current: 40A (2 seconds)

• Designed for use in applications with pulsed or intermittent loads like ham radios and AV gear.

2. Built-In PCM Protection

• Ensures safe operation through cell balancing and protection from overcurrent, overvoltage, undervoltage, and short circuiting.

• Includes integrated charge management.

3. Lightweight and Quiet Design

• PVC Case: Lightweight alternative to ABS, still rugged and reliable.

• Noise-Free Power: No EMI or RFI, making it suitable for sensitive electronics.

4. Charger Compatibility

• Compatible with Bioenno Power BPC-1502DC charger

• Specs:

  • Input: 120VAC / 220VAC

  • Output: 14.6VDC at 2A

  • Connector: DC Barrel Plug

---

Battery Specifications – BLF-1212AB

• Voltage: 12V

• Capacity: 12Ah

• Max Output Power: 240 Watts

• Case Type: PVC Pack

• Discharge Connector: Anderson Powerpole (PP30)

• Charge Connector: DC Barrel Plug

• Dimensions: 4.4 in. × 4.3 in. × 3.0 in. (108 mm × 108 mm × 75 mm)

• Weight: 3.3 lbs. (1.5 kg)

---

Benefits

• Drop-In Ready: Great for replacing SLA systems with clean, efficient lithium.

• Cycle Longevity: Up to 3,000 cycles under duty-cycled use; approx. 2,000 under continuous load.

• Field-Tested: Trusted in aviation, off-grid, and radio comms environments.

---

Ideal Applications

• Ham radios and mobile radio systems

• Sailplane avionics

• E-bikes and mobility scooters

• Portable solar power stations

• Audio-visual setups and field gear

---
