24V 100Ah LiFePO4 Battery with Rugged Aluminum Enclosure

Description

Click here to download the Material Safety Data Sheet for LiFePO4 (Lithium Iron Phosphate) batteries.

Sale Price:  $99.99 (battery only), $139.99 (battery+charger+Shunt Meter)

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-24100LB is a state of the art 24V 100Ah battery. This is a 24V LiFEPO4 battery.  This 24V LiFEPo4 battery is great for trolling motors and solar storage applications.  The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet!  This unit also includes a ShuntMeter to read out the percentage of capacity remaining via BlueTooth to the phone.  This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 10A, with a Grey SB120 Powerpole.  Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

BLF-24100LB User Manual [PDF]

BLF-24100LB Battery Specifications
Voltage: 24V
Capacity: 100Ah
Case Type: One Piece All Metal Case with Handles

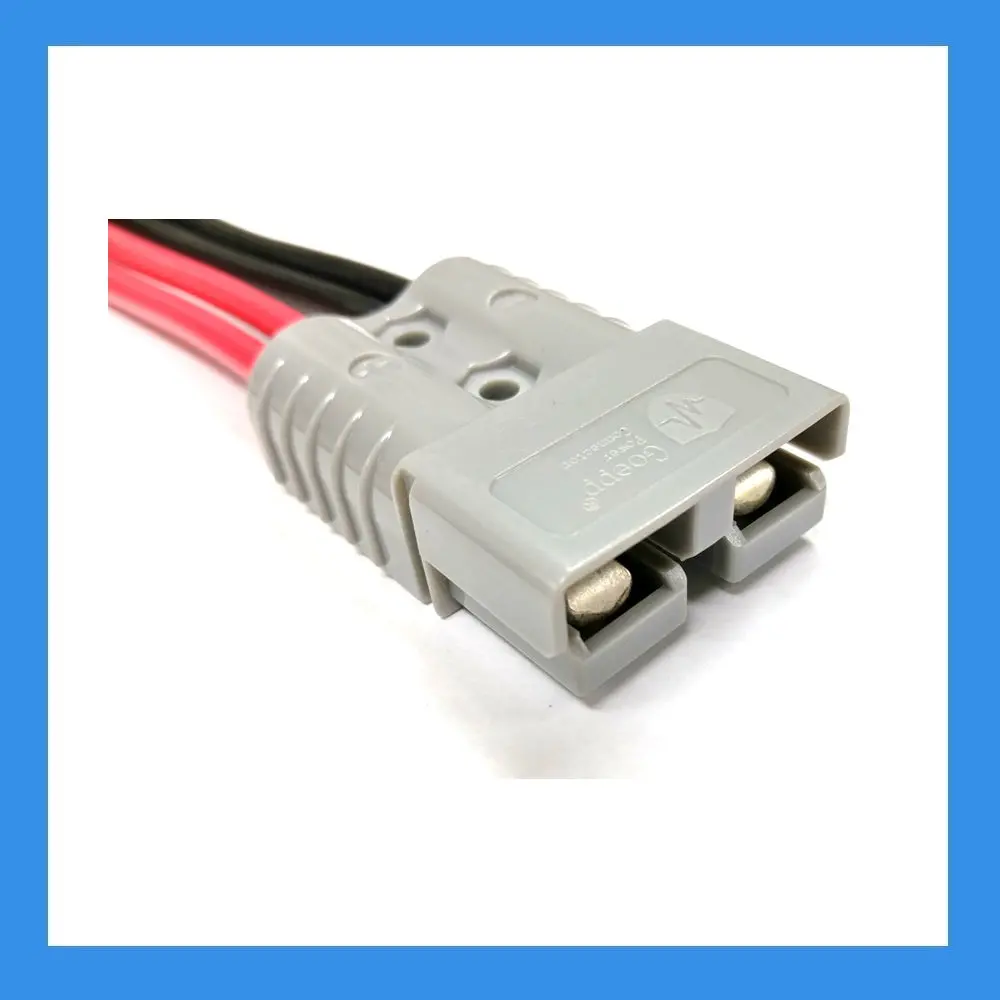

Charge Connector:  Anderson Grey SB120 Powerpole
Discharge Connector:  Anderson Grey SB120 Powerpole
Maximum Continuous Discharge Current: 60A (Make sure your load consumes less than 60A)
Maximum Peak Discharge Current: 120A (5 sec.)
Maximum Continuous Power:  1440 Watts (24V x 60A = 1440 Watts) (Make sure your load consumes less than 1440 Watts)
Dimensions:(L x W x H) 18.5 in. x 9.6 in. x 7.25 in. (470mm x 244 mm x 185 mm)
Weight: 60.3 lbs.  (27.4 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110VAC/220 VAC Charger

Compatible AC-to-DC Charger Specifications
Input Voltage: 110VAC/220 VAC
Output Voltage: 29.2VDC
Current: 10A
Connector: Via Adapter PP45 to G120
Model Number: BPC-2410A
*Battery uses charger model: BPC-2410A with PP45 to G120 Powerpole adapter

Policy

• Shipping: Standard
• Return/Exchange: 30 Days
• Warranty: See Warranty Page
